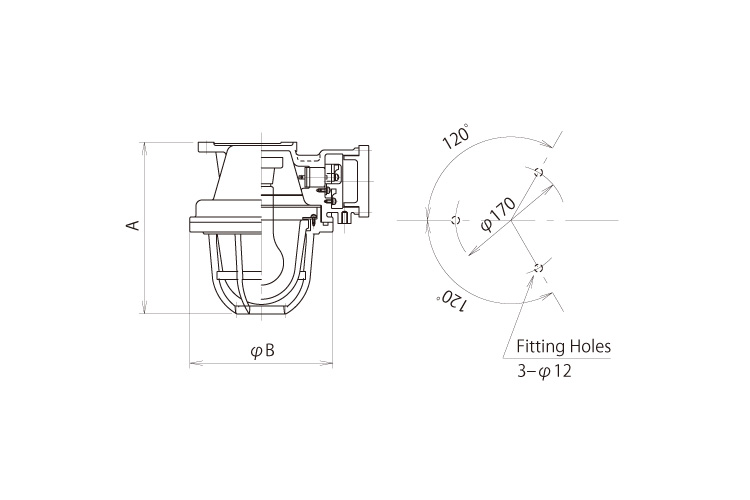

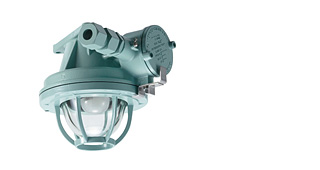

LED白熱形防爆天井灯 Flame-Proof LED Ceiling Light
Body ： Aluminium Alloy
Lamp Holder ： E-26
Finish ： 7.5BG7／2
| Type | Ex-Protection | Protection | Rated Voltage (V) |
Wattage (W) |
Color Temperature(K) |
Luminous Flux(Lm) |
Dimensions (mm) | Globe (material) |
||
| A | B | |||||||||
| 60W type | ELC-107(L) | ExdⅡ CT4 Gb | IP44 | AC100～240 | 100V : 7 220V : 7 |
5800 | 900 | 226 | 220 | EPC-107 |
| ELC-107S(L) | IP67 | EPC-107S | ||||||||
* Color Temperature : 5800K…Natural White
* Globe : Glass (Clear)
* Key bolt type (for control switch) is available on request.
* Blind cap & open tool are available on request.
* Globe : Glass (Clear)
* Key bolt type (for control switch) is available on request.
* Blind cap & open tool are available on request.

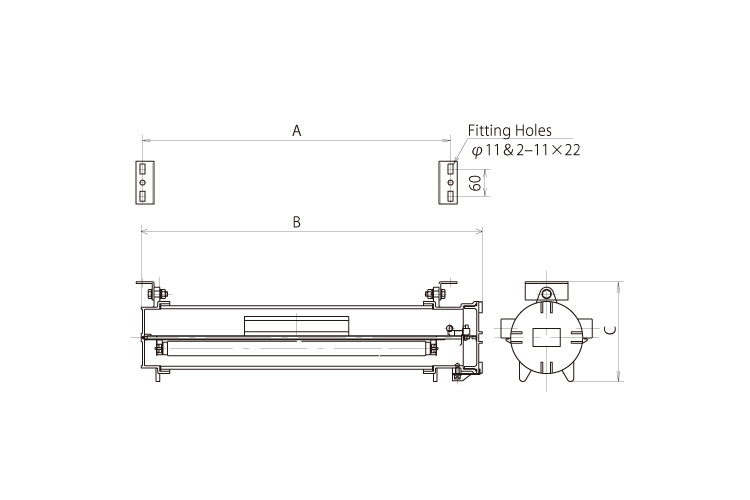

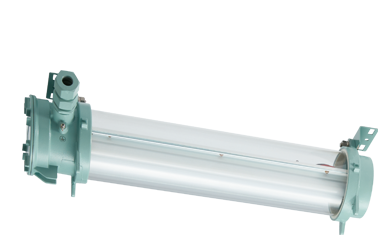

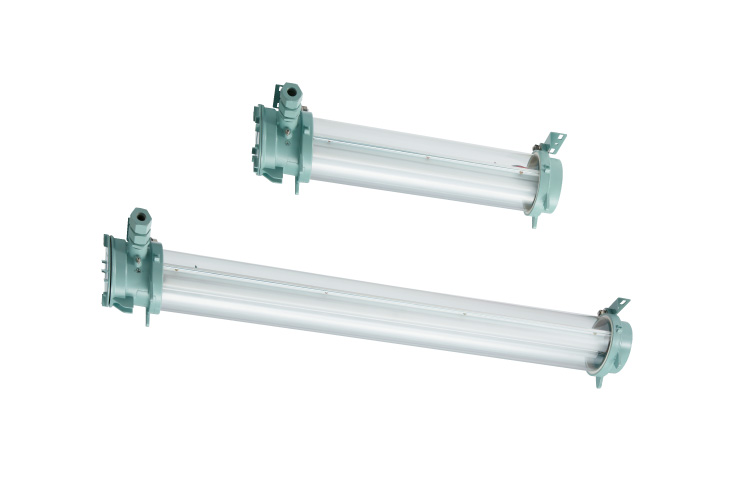

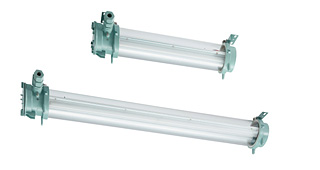

LED蛍光形防爆灯 Flame-Proof LED Light
Body ： Aluminium Alloy
Protection ： IP67
Finish ： 7.5BG7／2
| Type | Ex-Protection | Rated Voltage (V) |
Wattage (W) |
Color Temperature(K) |
Luminous Flux(Lm) |
Dimensions (mm) | Diffuser | Weight (kg) |
|||
| A | B | C | |||||||||
| 20W type×1 | EFB4L-201 |
ExdⅡCT6 Gb |
AC100～240 |
100V : 13 220V : 13 |
5000 | 1075 | 680 | 753 | 218 | LS-955 (Clear) |
7.5 |
| 20W type×2 | EFB4L-202 |
100V : 26 220V : 26 |
2150 | 8.0 | |||||||
| 40W type×1 | EFB4L-401 |
ExdⅡBT6 Gb | 100V : 24 220V : 24 |
2150 | 1228 | 1361 | 218 | LS-956 (Clear) |
11.0 | ||
| 40W type×2 | EFB4L-402 | 100V : 48 220V : 48 |
4300 | 12.0 | |||||||
* Color Temperature : 5000K…Natural White
* Globe : Polycarbonate pipe (Clear)
* Key bolt type (for control switch) is available on request.
* Blind cap & open tool are available on request.
* Globe : Polycarbonate pipe (Clear)
* Key bolt type (for control switch) is available on request.
* Blind cap & open tool are available on request.
LED防爆灯（水素対応） Explosion Proof LFD (Hydrogen compatible)
Body ： Stainless Steel
Protection ： IP65
Finish ： 7.5BG7／2
Area of application ： Zone 1 and Zone 2
： Zone 21 and Zone 22
Explosive atmosphere ： Hydrogen／Acelyene
： Comductivedusts
| Type | Ex-Protection | Rated Voltage (V) |
Wattage (W) |
Color Temperature(K) |
Luminous Flux(Lm) |
Dimensions (mm) | Diffuser | Weight (kg) |
|||
| A | B | C | |||||||||
| (40W type ×2) | EFD-35H |
Ex db eb mb ⅡC T4 Gb Ex tb ⅢC 89℃ Db |
AC100～240 |
100V : 35 220V : 35 |
5000 | 5280 | 500 | 733 | 138 | LS-996 (Milky) |
6.0 |
* Color Temperature : 5000K…Natural White
* Globe : Polycarbonate(Milky)
* Globe : Polycarbonate(Milky)
