蛍光ランプ形LED灯

Fluorescent tube type LED Lights

防水/防滴LED蛍光形天井灯
LED天井灯
LED薄型パネル照明
LED通路灯
LED外部通路灯
LED寝台灯
LED壁付灯
LED天井灯露出形人感センサー付
LED卓上灯
蓄電池一体型非常照明装置（LED）

防水/防滴LED蛍光形天井灯　Water-proof/Drip-proof LED Light

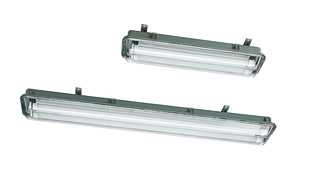

Water-proof/Drip-proof LED Light Fixed Type

防水/防滴LED蛍光形天井灯固定形

Protection : IP55／Gland , IP34／Coaming
Diffuser : 20W type／LS-768N , 40W type／LS-769N
Lamp Holder : G13
Body : Steel
Finish : 7.5BG7／2

	Type	Cable Entrance	Rated Voltage (V)	Wattage (W)	Color Temperature(K)	Luminous Flux(Lm)	Dimensions (mm)			Weight (kg)	Fig
							A	B	C
20W type×1	C-BCAF021(-E)	Gland	AC100～240	100V : 13.7 220V : 14.9	5000	1075	701	500	200	4.6	1
	C-BCAL021(-E)	Coaming
20W type×2	C-BCAF022(-E)	Gland		100V : 27.4 220V : 29.8		2150				5.2
	C-BCAL022(-E)	Coaming
40W type×1	C-BCAF041(-E)	Gland		100V : 24.5 220V : 24.8		2150	1311	750	200	8.8
	C-BCAL041(-E)	Coaming
40W type×2	C-BCAF042(-E)	Gland		100V : 49 220V : 49.6		4300				9.9
	C-BCAL042(-E)	Coaming

* Type (-E) : With Emergency Lamp
* Color Temperature : 5000K…Natural White
* Stainless steel housing can be selected for outside uses.
* Polycarbonate diffuser is available on request.
* Milky diffuser can be selected.
* Guard & Terminal boxes are available on request.

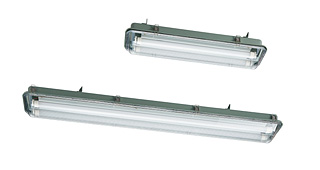

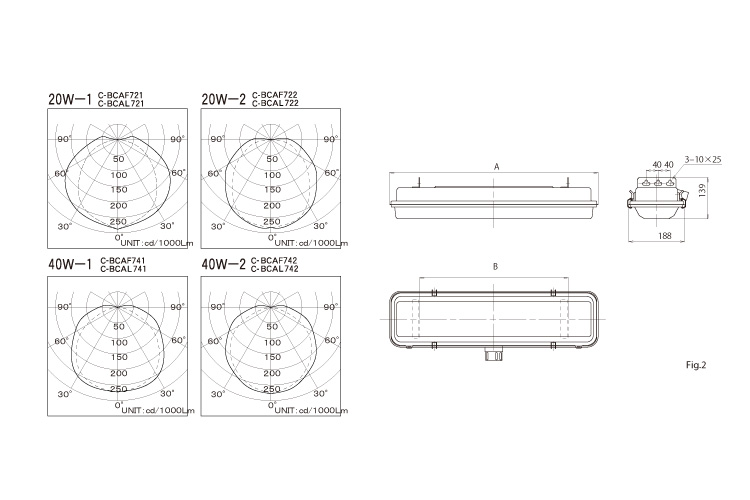

Water-proof/Drip-proof LED Light Hanging Type

防水/防滴LED蛍光形天井灯吊下げ形

Protection : IP55／Gland , IP34／Coaming
Diffuser : 20W type／LS-768N , 40W type／LS-769N
Lamp Holder : G13
Body : Steel
Finish : 7.5BG7／2

	Type	Cable Entrance	Rated Voltage (V)	Wattage (W)	Color Temperature(K)	Luminous Flux(Lm)	Dimensions (mm)		Weight (kg)	Fig
							A	B
20W type×1	C-BCAF721(-E)	Gland	AC100～240	100V : 13.7 220V : 14.9	5000	1075	701	500	4.6	2
	C-BCAL721(-E)	Coaming
20W type×2	C-BCAF722(-E)	Gland		100V : 27.4 220V : 29.8		2150			5.2
	C-BCAL722(-E)	Coaming
40W type×1	C-BCAF741(-E)	Gland		100V : 24.5 220V : 24.8		2150	1311	750	8.8
	C-BCAL741(-E)	Coaming
40W type×2	C-BCAF742(-E)	Gland		100V : 49 220V : 49.6		4300			9.9
	C-BCAL742(-E)	Coaming

LED天井灯　LED Ceiling Light

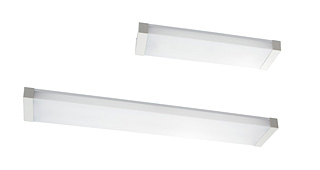

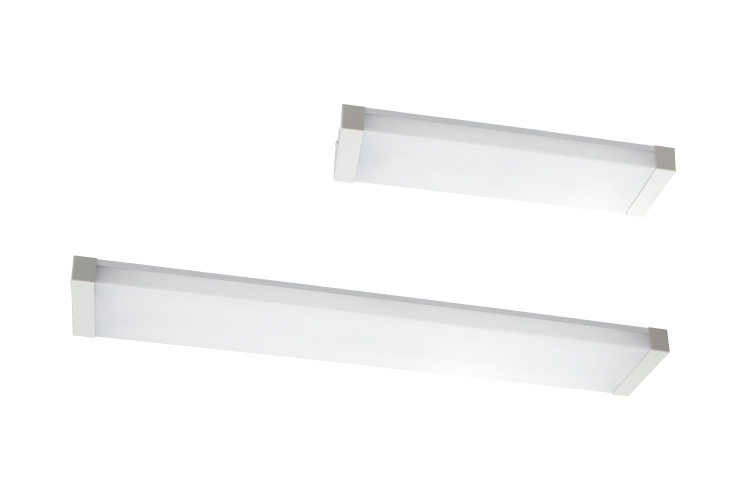

LED Ceiling Light Surface Type

LED天井灯露出形

Protection ： IP20
Lamp Holder ： G13
Body ： Steel
Finish ： N-9.5

	Type	Rated Voltage (V)	Wattage (W)	Color Temperature(K)	Luminous Flux(Lm)	Diffuser	Weight (kg)	Fig
20W type×1	C-BCC0621(-E)	AC100～240	100V : 13.7 220V : 14.9	5000	1075	LS-794-1 (Milky)	3.1	3
20W type×2	C-BCC0622(-E)		100V : 27.4 220V : 29.8		2150	LS-794-1 (Milky)	3.8	3
20W type×3	C-BCC0623(-E)		100V : 41.1 220V : 44.7		3225	LS-796-1 (Milky)	5.8	4
40W type×1	C-BCC0641(-E)		100V : 24.5 220V : 24.8		2150	LS-795-1 (Milky)	5.4	5
40W type×2	C-BCC0642(-E)		100V : 49 220V : 49.6		4300	LS-795-1 (Milky)	5.8	5

* Type (-E) : With Emergency Lamp
* Color Temperature : 5000K…Natural White
* Prismatic diffuser is available on request.

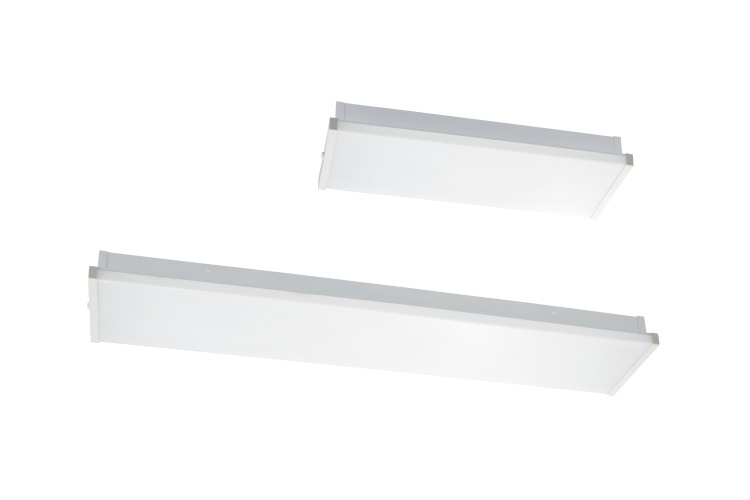

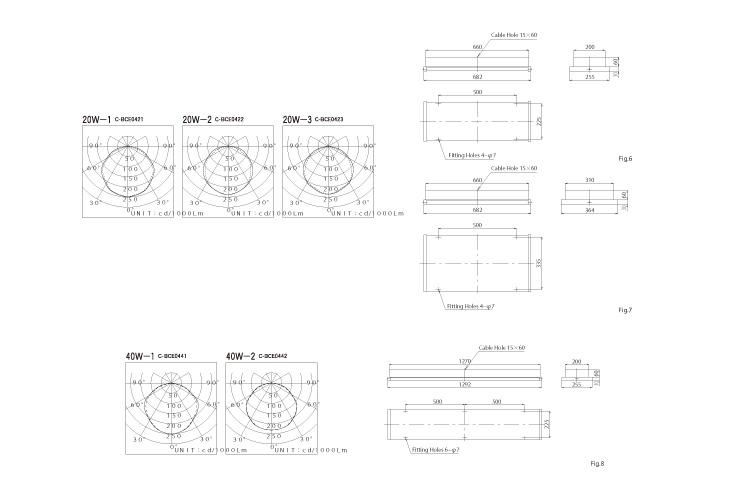

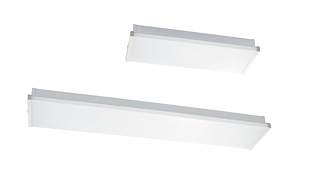

LED Ceiling Light Recessed Type

LED天井灯埋込み形

Protection ： IP20
Lamp Holder ： G13
Body ： Steel
Finish ： N-9.5

	Type	Rated Voltage (V)	Wattage (W)	Color Temperature(K)	Luminous Flux(Lm)	Diffuser	Weight (kg)	Fig
20W type×1	C-BCE0421(-E)	AC100～240	100V : 13.7 220V : 14.9	5000	1075	LS-715 (Milky)	3.3	6
20W type×2	C-BCE0422(-E)		100V : 27.4 220V : 29.8		2150	LS-715 (Milky)	4.4	6
20W type×3	C-BCC0423(-E)		100V : 41.1 220V : 44.7		3225	LS-716 (Milky)	5.9	7
40W type×1	C-BCC0441(-E)		100V : 24.5 220V : 24.8		2150	LS-717 (Milky)	6.2	8
40W type×2	C-BCC0442(-E)		100V : 49 220V : 49.6		4300	LS-717 (Milky)	7.9	8

* Type (-E) : With Emergency Lamp
* Color Temperature : 5000K…Natural White
* Prismatic diffuser is available on request.

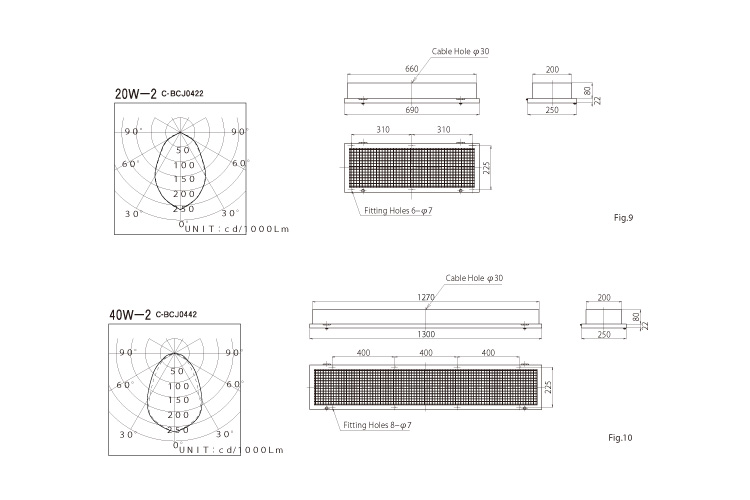

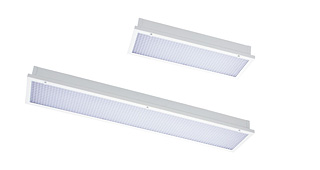

LED Ceiling Light Recessed Type (with Louver)

LED天井灯埋込み形（ルーバー付）

Protection : IP20
Lamp Holder : G13
Body : Steel
Finish : N-9.5

	Type	Rated Voltage (V)	Wattage (W)	Color Temperature(K)	Luminous Flux(Lm)	Louver	Weight (kg)	Fig
20W type×2	C-BCJ0422(-E)	AC100～240	100V : 27.4 220V : 29.8	5000	2150	LS-804 (White)	4.3	9
40W type×2	C-BCJ0442(-E)	AC100～240	100V : 49 220V : 49.6	5000	4300	LS-805 (White)	7.0	10

* Type (-E) : With Emergency Lamp
* Color Temperature : 5000K…Natural White

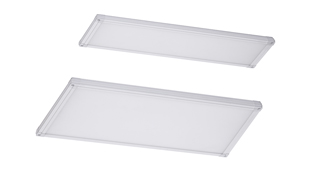

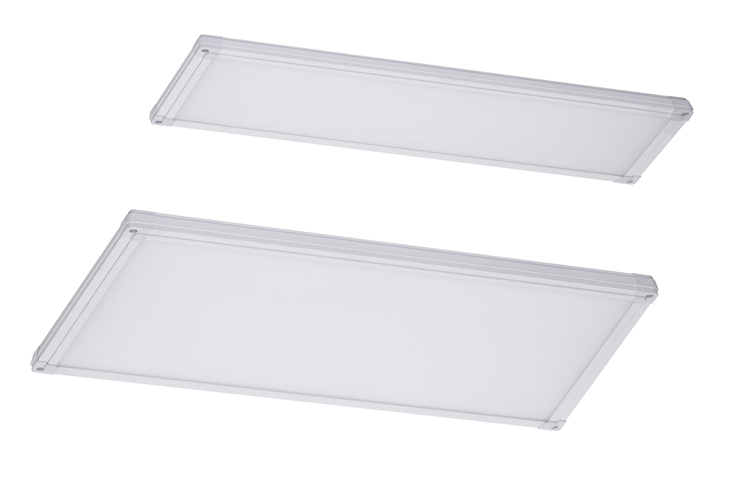

LED薄型パネル照明　LED Panel Light

LED Panel Light

Protection ： IP20
Frame ： Aluminum
Finish ： N-9.5

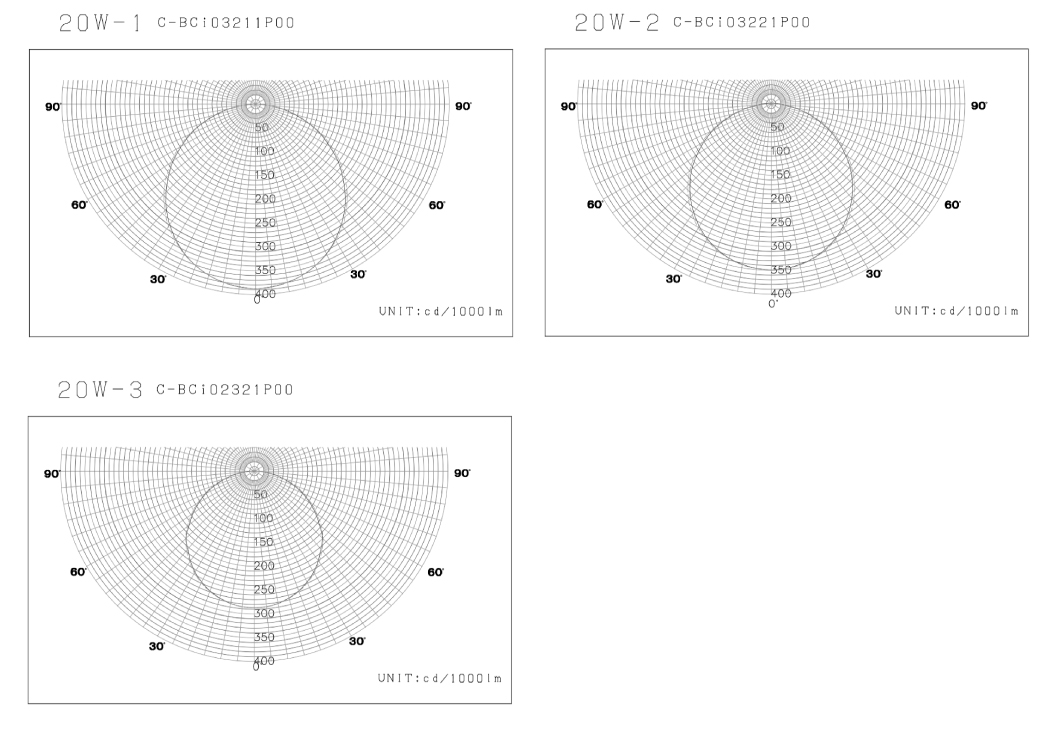

配光データ

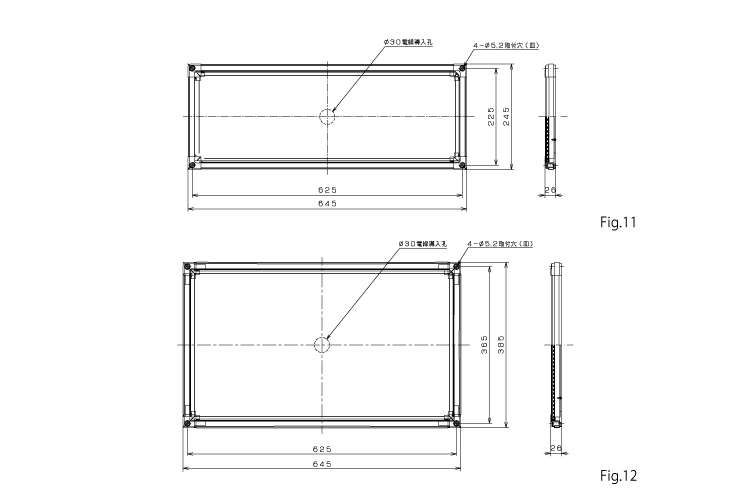

	Type	Rated Voltage (V)	Wattage (W)	Color Temperature(K)	Luminous Flux(Lm)	Weight (kg)	Fig
20W type×1	C-BCi03211P00(-E)	AC100～240	100V : 16.1 220V : 16.1	5000	1800	1.84	11
20W type×2	C-BCi03221P00(-E)		100V：32.1 220V：31.8		3600	1.84	11
20W type×3	C-BCi02321P00(-E)		100V：46.5 220V：46.3		5400	2.78	12

* Type (-E) : With Emergency Lamp
* Color Temperature : 5000K…Natural White

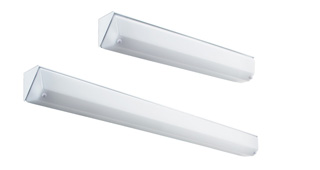

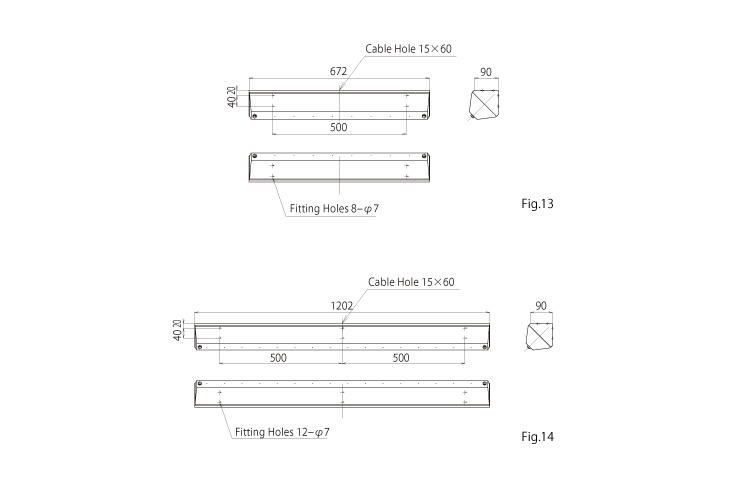

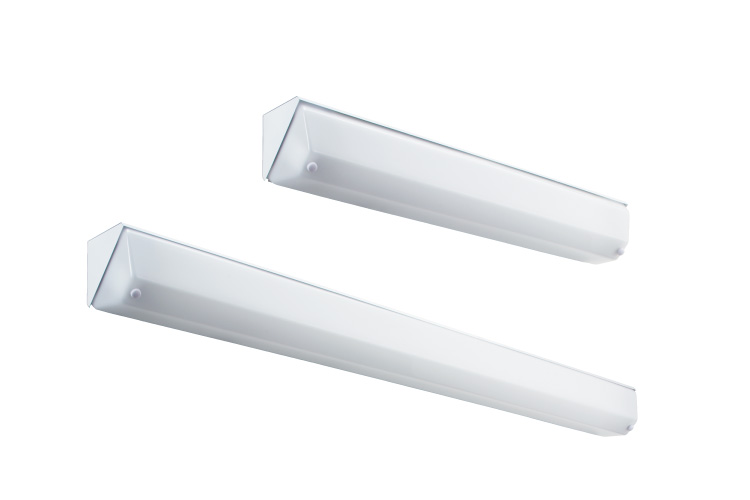

LED通路灯　LED Passage Light

Protection ： IP20
Lamp Holder ： G13
Body ： Steel
Finish ： N-9.5

	Type	Rated Voltage (V)	Wattage (W)	Color Temperature(K)	Luminous Flux(Lm)	Diffuser	Weight (kg)	Fig
20W type×1	C-BTC0321(-E)	AC100～240	100V : 13.7 220V : 14.9	5000	1075	LS-759 (Milky)	2.5	13
40W type×1	C-BTC0341(-E)	AC100～240	100V：24.5 220V：24.8	5000	2150	LS-760 (Milky)	7.0	14

* Type (-E) : With Emergency Lamp
* Color Temperature : 5000K…Natural White

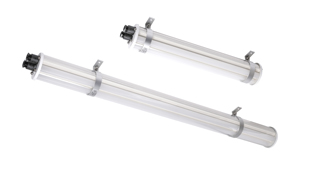

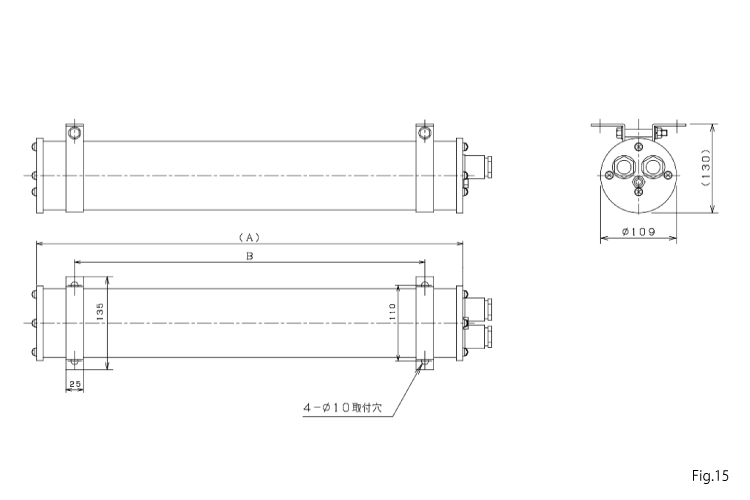

LED外部通路灯　LED Out Passage Light

Protection ： IP56
Body ： Stainless Steel , Aluminum
Finish ： N-9.5

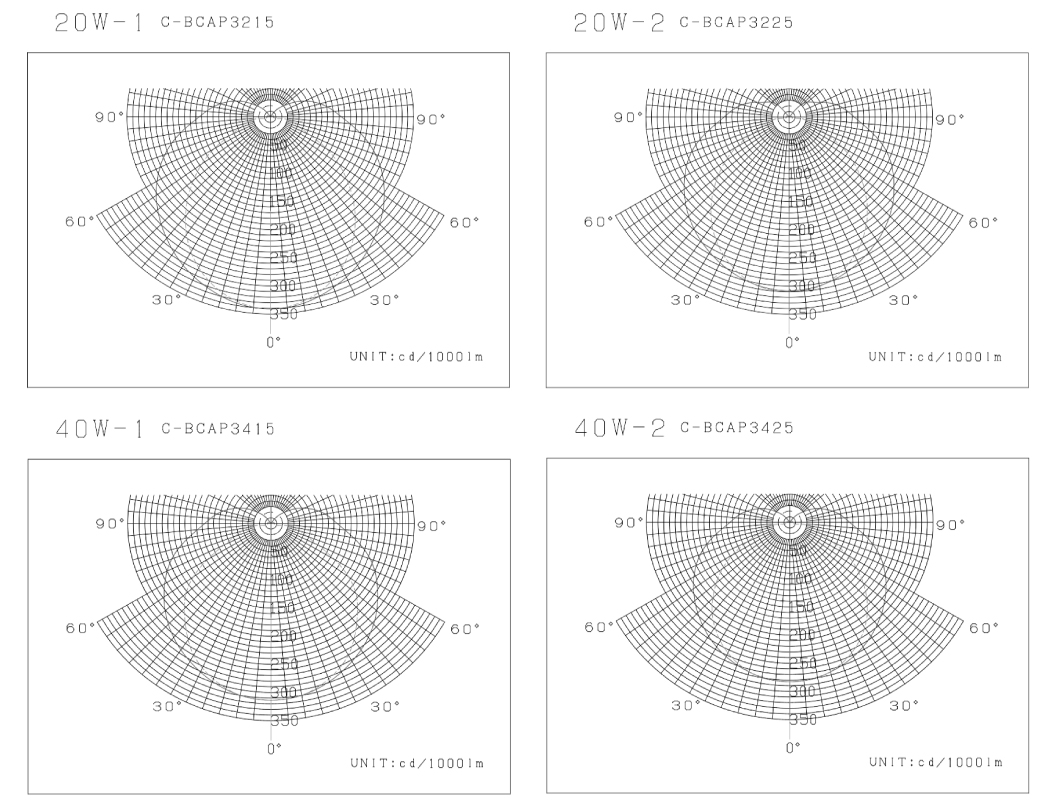

配光データ

	Type	Rated Voltage (V)	Wattage (W)	Color Temperature(K)	Luminous Flux(Lm)	Dimensions (mm)		Weight (kg)	Fig
						A	B
20W type×1	C-BCAP3215(-E)	AC100～240	100V : 13.7 220V : 14.9	5000	1075	610	500	2.7	15
20W type×2	C-BCAP3225(-E)		100V : 27.4 220V : 29.8		2150
40W type×1	C-BCAP3415(-E)		100V : 24.5 220V : 24.8		2150	1230	750	4.5
40W type×2	C-BCAP3425(-E)		100V : 49.0 220V : 49.6		4300

* Type (-E) : With Emergency Lamp
* Color Temperature : 5000K…Natural White

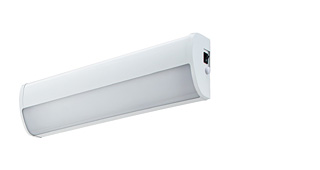

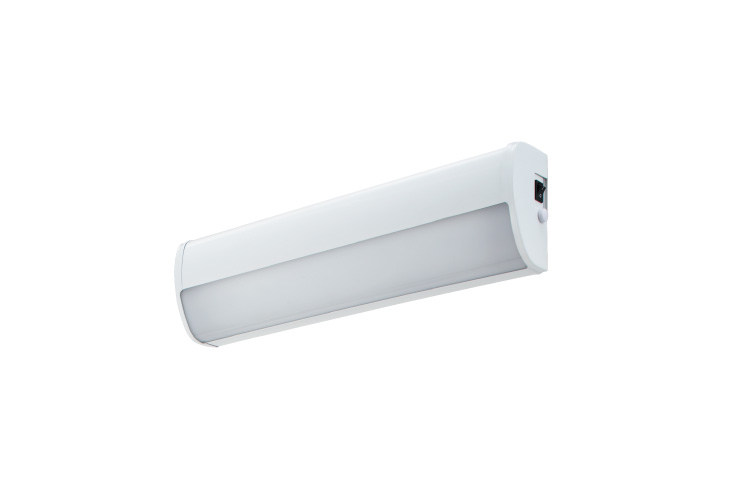

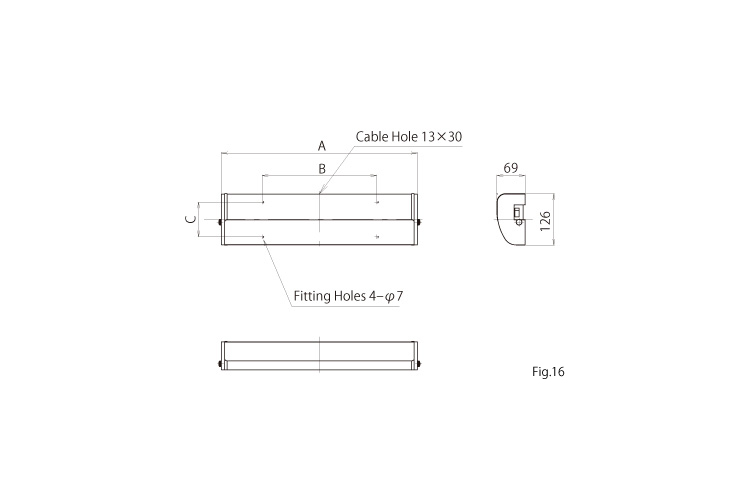

LED寝台灯　LED Bed Light

Protection ： IP20
Lamp Holder ： G13
Body ： Steel
Finish ： N-9.5

Type

Rated Voltage
(V)

Wattage
(W)

Color
Temperature(K)

Luminous
Flux(Lm)

Switch

Receptacle
(2P)

Dimensions (mm)

Diffuser

Weight
(kg)

Fig

10W type×1

C-BWC2S11

AC100～240

100V : 9
220V : 10

5000

745

○

372

280

LS-484
(Milky)

1.8

C-BWC2W11

○

15W type×1

C-BWC2S51

100V : 9.6
220V : 10.6

800

○

477

280

LS-485
(Milky)

2.2

C-BWC2W51

○

* Color Temperature : 5000K…Natural White

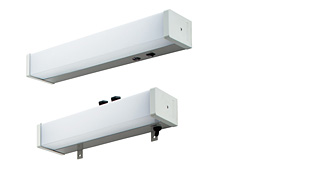

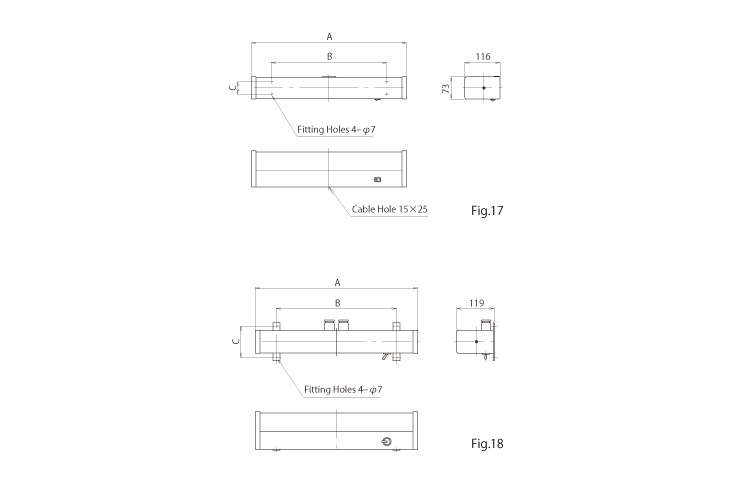

LED壁付灯　LED Wall Light

Protection : IP20
Lamp Holder : G13
Body : Steel
Finish : Ivory

Type

Rated Voltage
(V)

Wattage
(W)

Color
Temperature
(K)

Luminous
Flux(Lm)

Switch

Receptacle
(2P)

Dimensions (mm)

Diffuser

Weight
(kg)

Fig

10W type×1

C-BWC3011

AC100～240

100V : 9
220V : 10

5000

745

404

260

LS-791
(Milky)

1.7

C-BWC3S11

○

C-BWC3W11

○

15W type×1

C-BWC3051

100V : 9.6
220V : 10.6

800

510

380

LS-761
(Milky)

1.9

C-BWC3S51

○

C-BWC3W51

○

* Color Temperature : 5000K…Natural White

Protection : IP34
Lamp Holder : G13
Body : Steel
Finish : Ivory

Type

Rated Voltage
(V)

Wattage
(W)

Color
Temperature
(K)

Luminous
Flux(Lm)

Switch

Receptacle
(2P)

Dimensions (mm)

Diffuser

Weight
(kg)

Fig

10W type×1

C-BWB3011

AC100～240

100V : 9
220V : 10

5000

745

410

260

100

LS-789
(Milky)

1.7

C-BWB3S11

○

15W type×1

C-BWB3051

100V : 9.6
220V : 10.6

800

515

380

100

LS-778
(Milky)

1.9

C-BWB3S51

○

C-BWB3W51

○

* Color Temperature : 5000K…Natural White

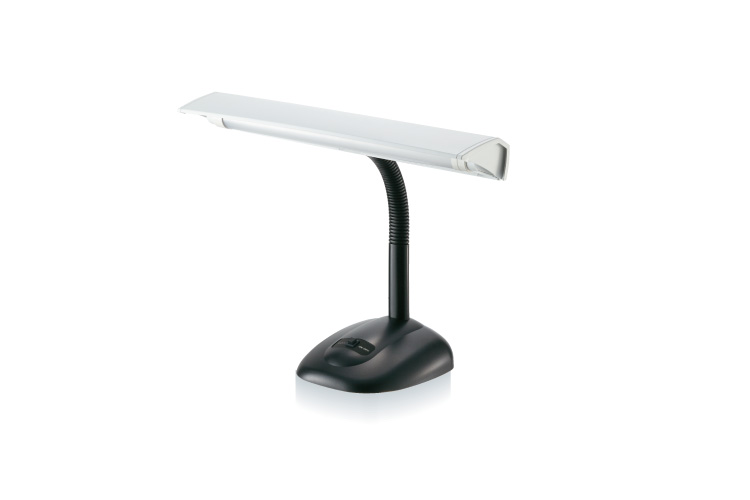

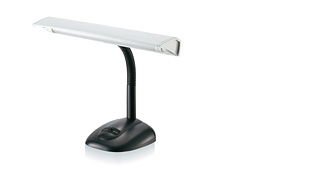

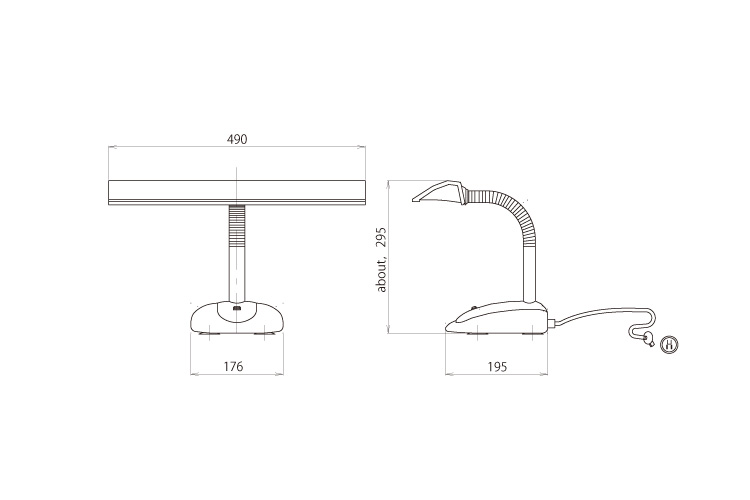

LED卓上灯　LED Desk Light

Protection : IP20
Lamp Holder : G13
Body : Polystyrene
Body/Shade : Black／White
With a code & UB plug.

	Type	Rated Voltage (V)	Wattage (W)	Color Temperature(K)	Luminous Flux(Lm)	Weight (kg)
15W type×1	C-BXDM751	AC100～240	100V : 9.6 220V : 10.6	5000	800	1.0

* Color Temperature : 5000K…Natural White

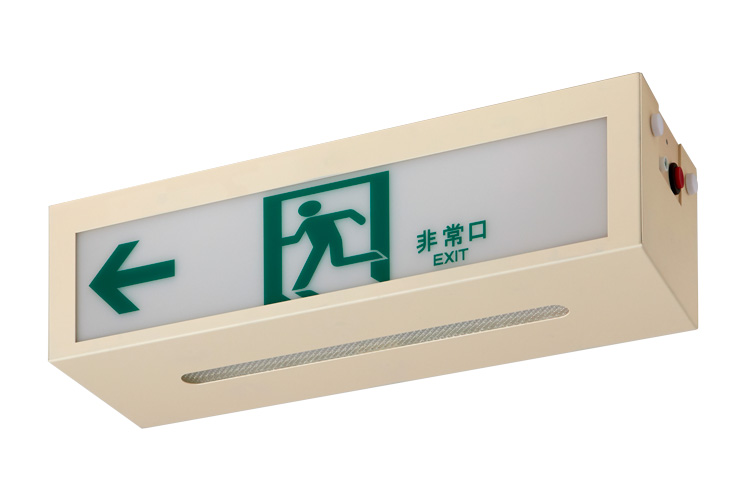

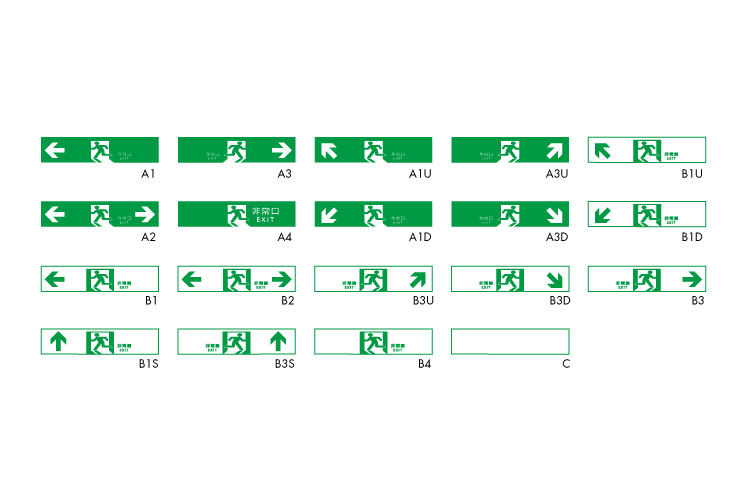

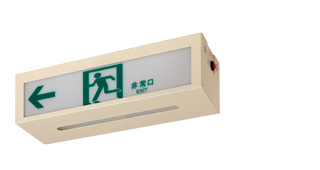

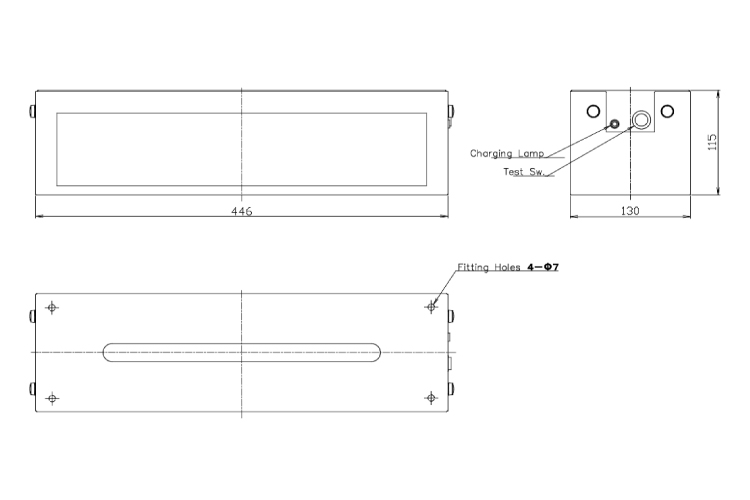

LED蓄電池一体型非常照明装置
LED Emergency Light Self Contained Battery Type
FL10W × 1（器具相当）

Type : BGLDL02
Discharge time : 3hrs
Protection : IP30
Rated Voltage : AC100V
Wattage : LED3W
Body : Steel
Finish : 2.5Y9／2
Waight : 3.1kg

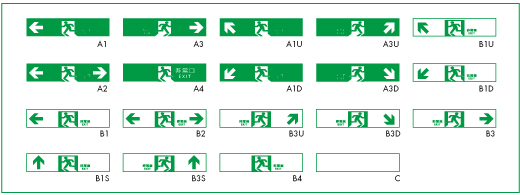

Panels
