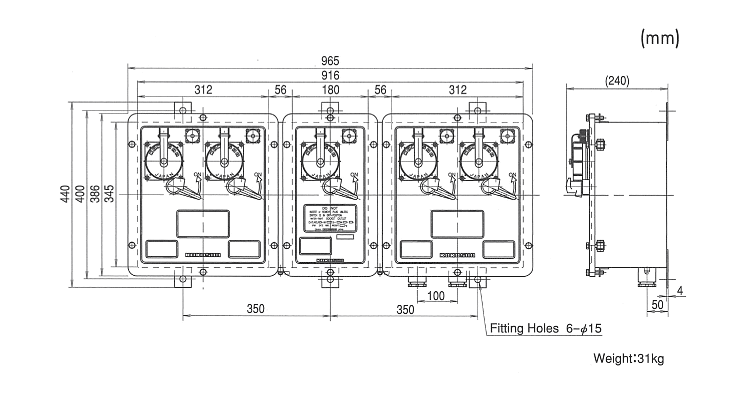

ソケットアウトレット

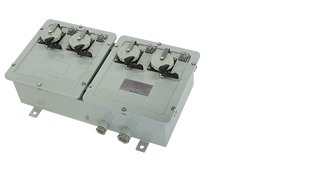

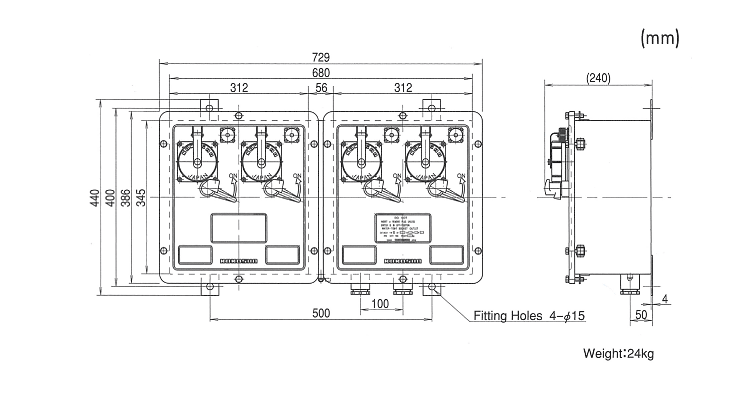

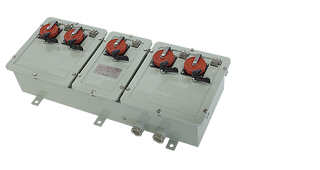

標準型 Standard Type
SeriesⅠ
Conforms to ISO
250VAC 60Amperes
3Wire-4Pole
Mechanically Interlocked
With circuit Breaker
Housing・・・・・Stainless steel
| Without Monitoring Socket | With Monitoring Socket | |
| Single | R6-W0602T-60 | R6-W4602T-60 |
| 2-GANG | R6-W0663T-60 | R6-W4603T-60 |
| 3-GANG | R6-W0604T-60 | R6-W4604T-60 |
| 4-GANG | R6-W0607T-60 | R6-W4607T-60 |
| 5-GANG | R6-W0608T-60 | R6-W4608T-60 |
| 6-GANG | R6-W0609T-60 | R6-W4609T-60 |
SeriesⅡ
Conforms to ISO & IEC
380 to 440VAC 32Amperes
3Wire-4Pole
Earth contact position-3h
Mechanically Interloked
With circuit Breaker
Housing・・・・・Stainless steel
| Without Monitoring Socket | With Monitoring Socket | |
| Single | R7-W0302T-3h | R7-W4302T-3h |
| 2-GANG | R7-W0303T-3h | R7-W4303T-3h |
| 3-GANG | R7-W0334T-3h | R7-W4334T-3h |
| 4-GANG | R7-W0337T-3h | R7-W4337T-3h |
| 5-GANG | R7-W0338T-3h | R7-W4338T-3h |
| 6-GANG | R7-W0339T-3h | R7-W4339T-3h |

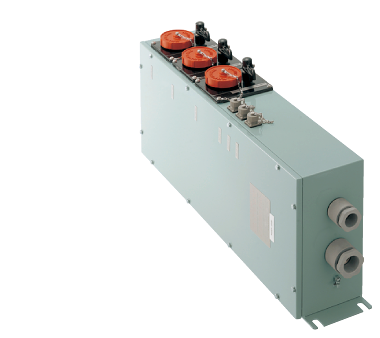

スリム形 Slim Type For Narrow Space
Slim Type For Narrow Space
Conforms to ISO & IEC
380 to 440VAC 32Amperes
Most recommendable for narrow passageway width.
Mechanically Interlocked with Circuit Breaker.
Housing・・・・Stainless steel
Plugs to be inserted from underneath.
| Without Monitoring Socket | With Monitoring Socket | |
| 3-GANG | RD7-W0334T-3h | RD7-W4334T-3h |
| 4-GANG | RD7-W0337T-3h | RD7-W4337T-3h |
| 5-GANG | RD7-W0338T-3h | RD7-W4338T-3h |
| 6-GANG | RD7-W0339T-3h | RD7-W4339T-3h |

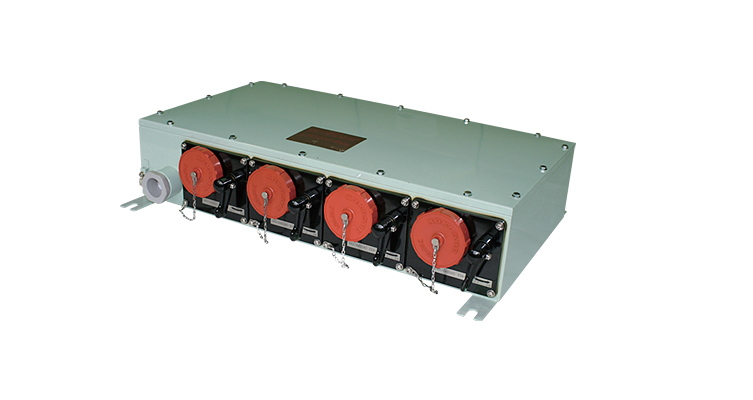

Slim Type For Narrow Space
Plugs to be inserted from sideways.
| Without Monitoring Socket | With Monitoring Socket | |
| 3-GANG | R7-W033SS-3h | R7-W433SS-3h |
| 4-GANG | R7-W034SS-3h | R7-W434SS-3h |

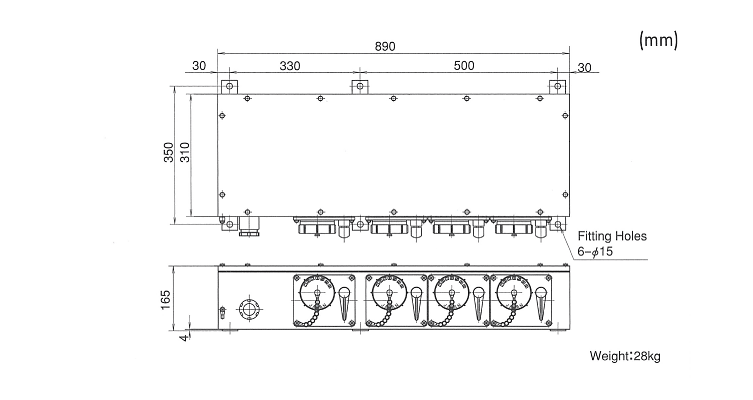

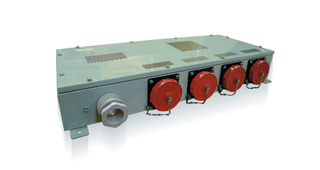

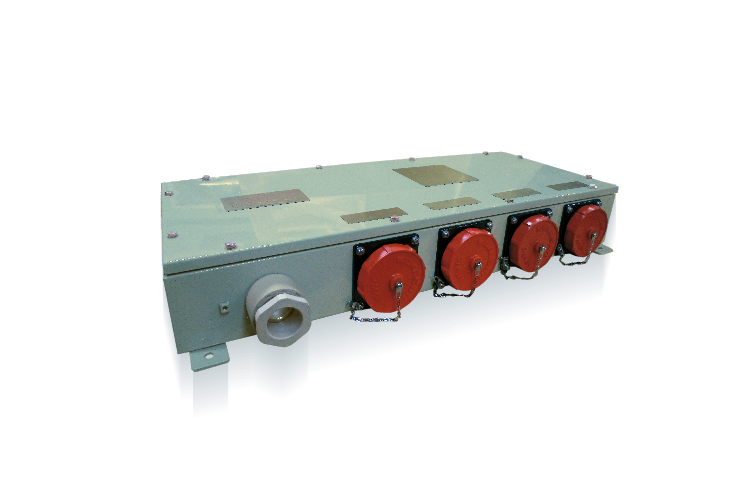

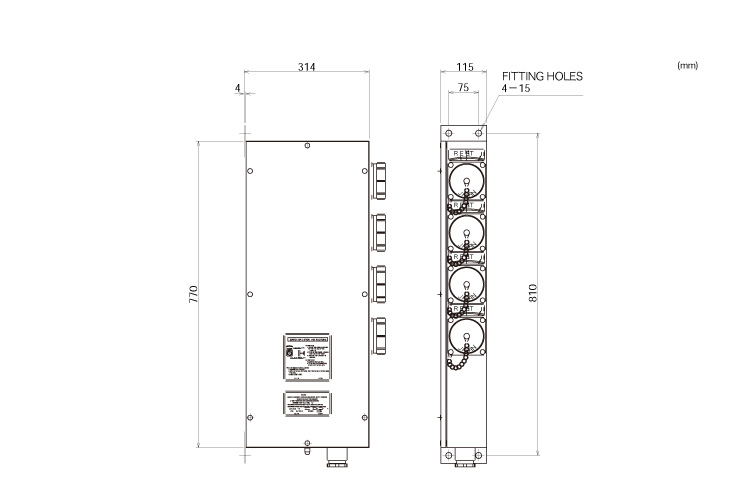

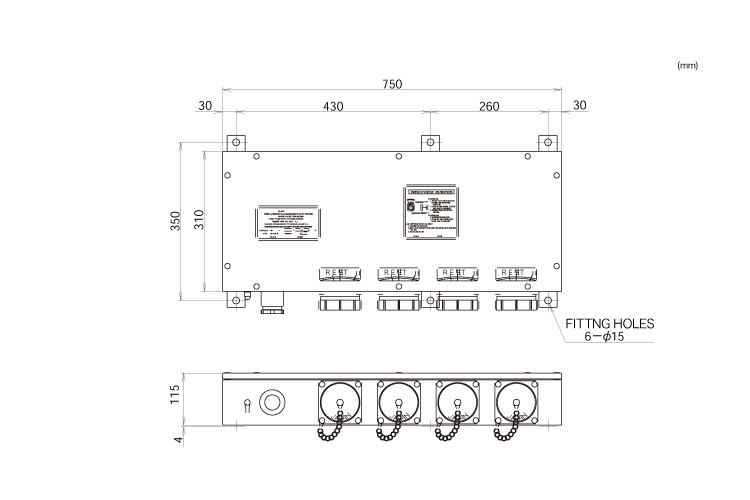

新スリム形 New Slim Type For Narrow Space
Conforms to ISO & IEC
380 to 440VAC 32Amperes
Most recommendable for narrow passageway width.
Mechanically Interlocked with Circuit Breaker.
Housing……Stainless steel
Plugs to be inserted from underneath.
Interior Assemblies……PRF432-R
| Type | |
| 2-GANG | RK7-W0333T-3h |
| 3-GANG | RK7-W0334T-3h |
| 4-GANG | RK7-W0337T-3h |
| 5-GANG | RK7-W0338T-3h |
| 6-GANG | RK7-W0339T-3h |
| Type | |
| 3-GANG | RK7-W034SS-3h |
| 4-GANG | RK7-W035SS-3h |
| 5-GANG | RK7-W036SS-3h |

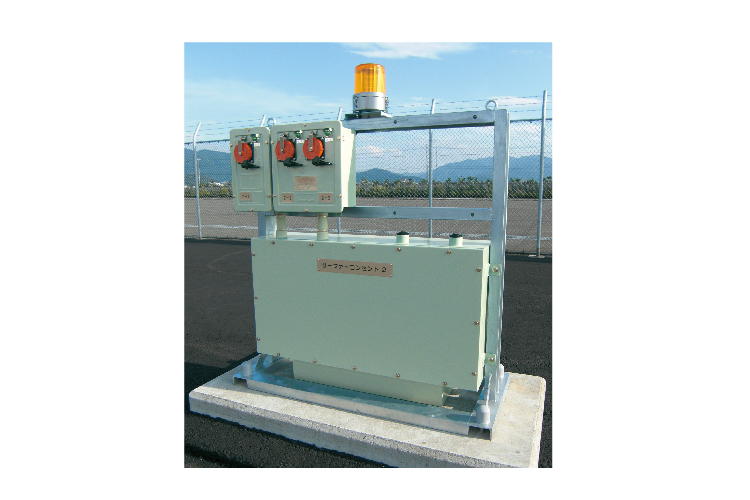

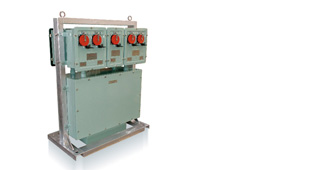

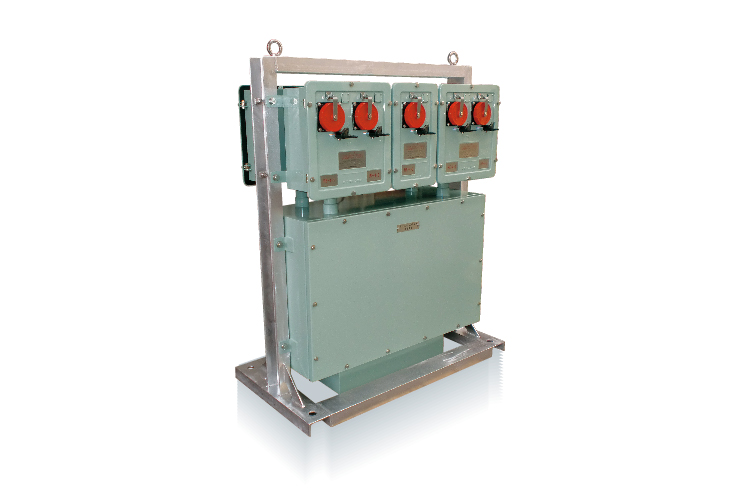

コンテナバース向けリーファーコンセント
Container Berth For Refrigeration Outlet

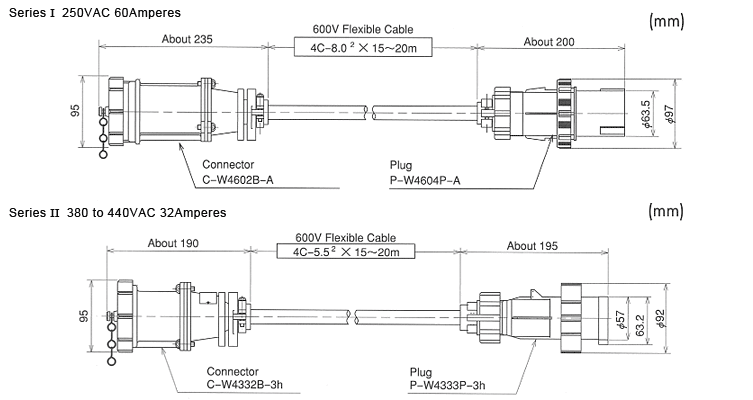

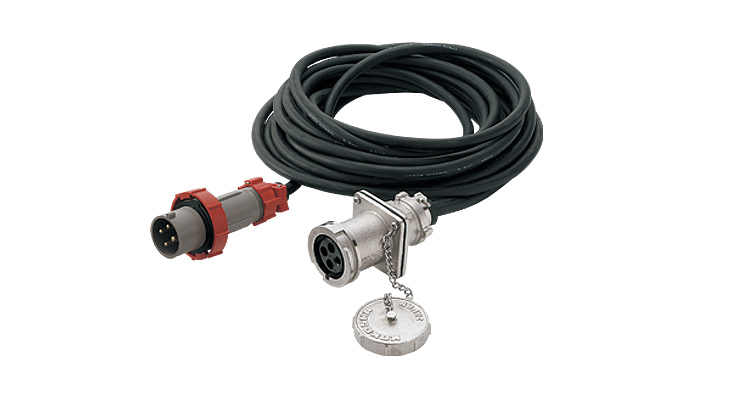

ケーブルコネクター Cable Connector
3Wire-4Pole
SeriesⅠ: 250VAC 60Amperes
SeriesⅡ: 380 to 440VAC 32Amperes

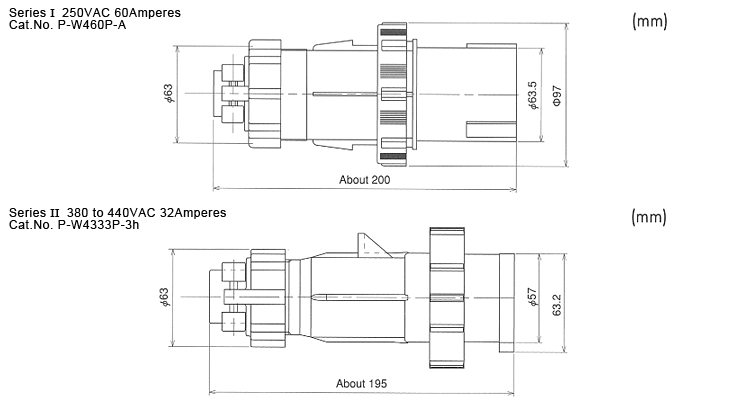

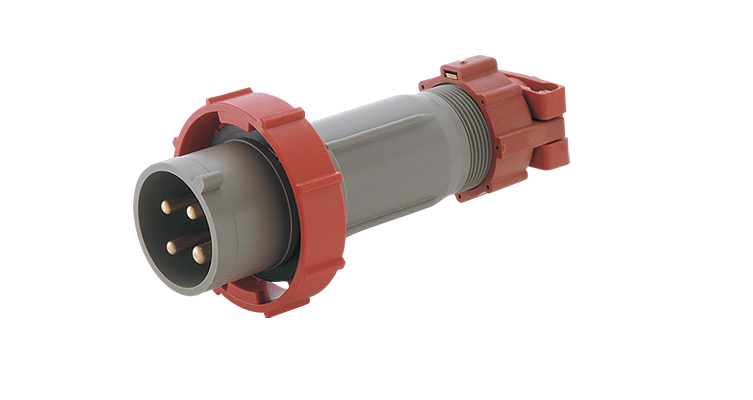

プラグ Plugs
Plugs
Housing・・・・Hight-Impact PLASTIC
SeriesⅠ: 250VAC 60Amperes
SeriesⅡ: 380 to 440VAC 32Amperes

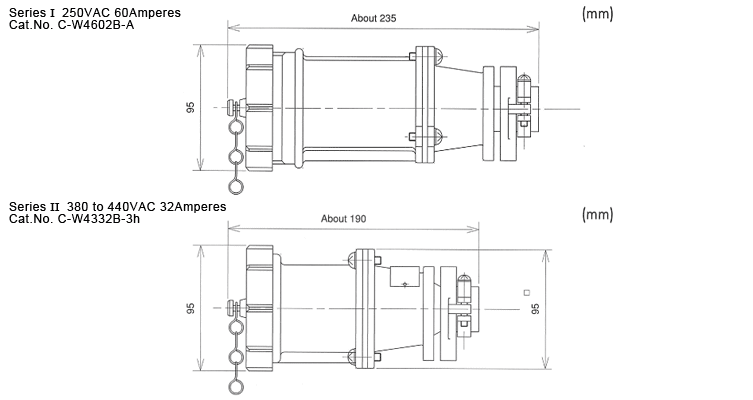

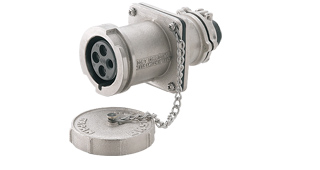

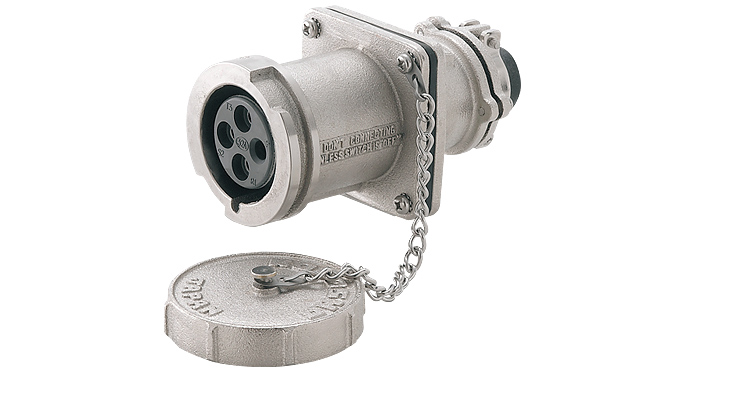

コネクター Connectors
Housing・・・・Cast Brass
SeriesⅠ: 250VAC 60Amperes
SeriesⅡ: 380 to 440VAC 32Amperes

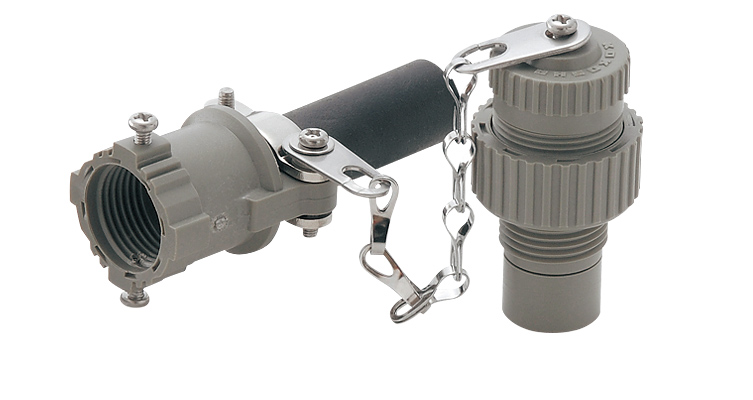

モニターケーブル＆プラグ Monitoring Cables & Plugs
Housing・・・・Hight-Impact PLASTIC

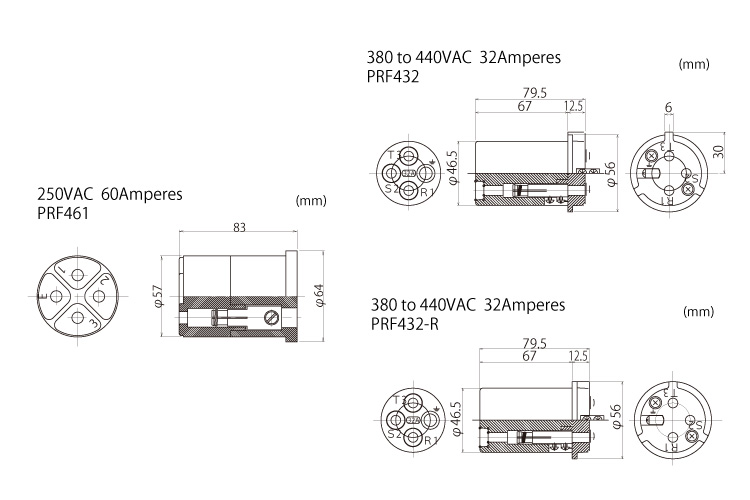

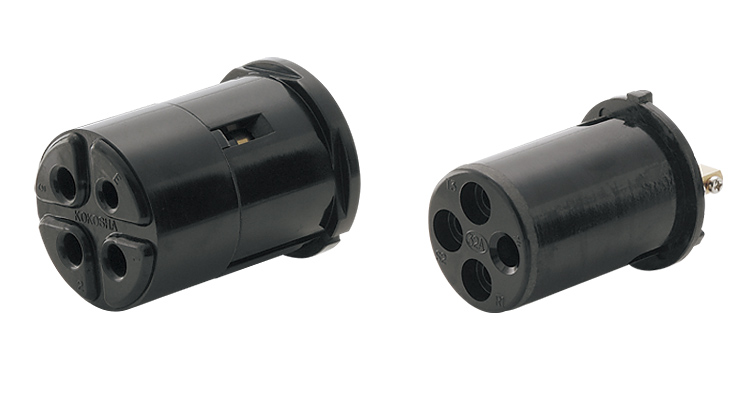

インシュレーターユニット Interior Assemblies
250VAC 60Amperes
PRF461
380V to 440VAC 32Amperes
PRF432
