接続箱 Junction Box
Coaming Type
Coaming Type
| Rating | Terminal Pole |
Protection | Dimensions(mm) | Housing | Finish | ||||
| A | B | C | D | H | |||||
| 600V/15A | 12P (MAX) |
IP22 | 130 | 240 | 160 | 160 | 100 | Steel | 7.5BG7/2 |
| 60P (MAX) |
410 | 280 | 440 | 160 | 100 | ||||
| 220P ～360P | 620 | 670 | 650 | 320 | 200 | ||||

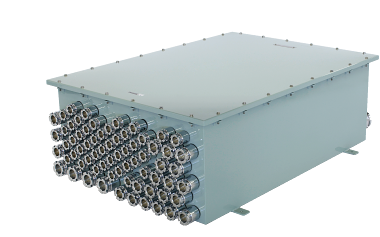

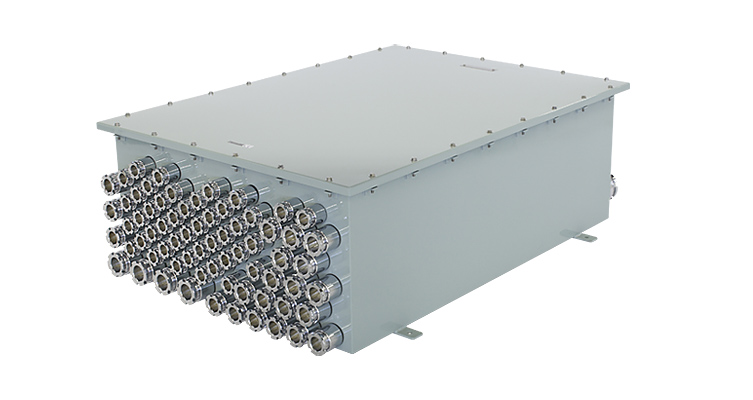

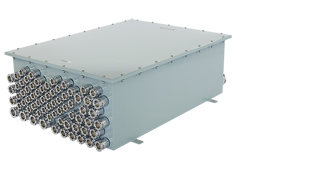

Gland Type
| Rating | Terminal Pole |
Protection | Dimensions(mm) | Housing | Finish | ||||
| A | B | C | D | H | |||||
| 600V/15A | 36P (MAX) |
IP44 | 306 | 316 | 300 | 160 | 155 | Steel | 7.5BG7/2 |
| 72P (MAX) |
446 | 316 | 440 | 160 | 155 | ||||
| 80P ～120P | 446 | 476 | 440 | 290 | 155 | ||||
| 120P ～192P | 666 | 516 | 660 | 310 | 155 | ||||
| 48P (MAX) |
IP56 | 306 | 316 | 300 | 160 | 160 | Stainless Steel Plate |
||
The dimensions are shown as an example.

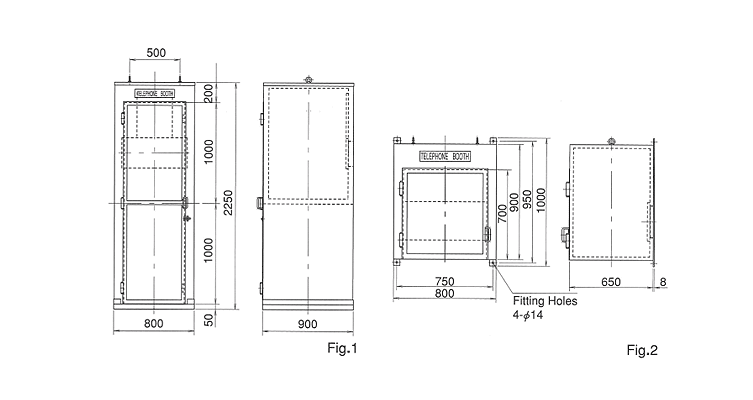

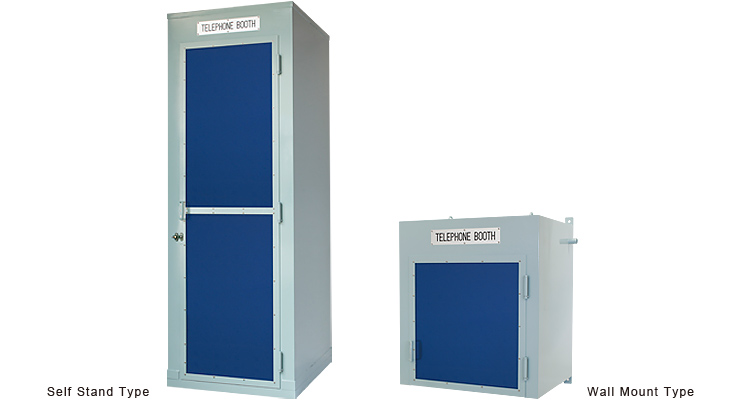

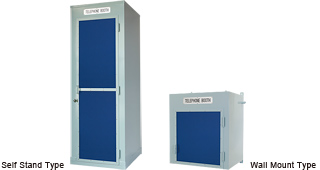

電話ボックス Telephone Booth
Telephone Booth
| Type | Fig | Housing | Finish | Weight (kg) | |
| Self Stand Type(Full Size) | A-1 | 1 | Steel | 7.5BG7/2 | 160 |
| Wall Mount Type(Half Size) | A-2 | 2 | 70 |
The hinge position can be selected right and left.
配線器具 Receptacle, Plugs and Switches

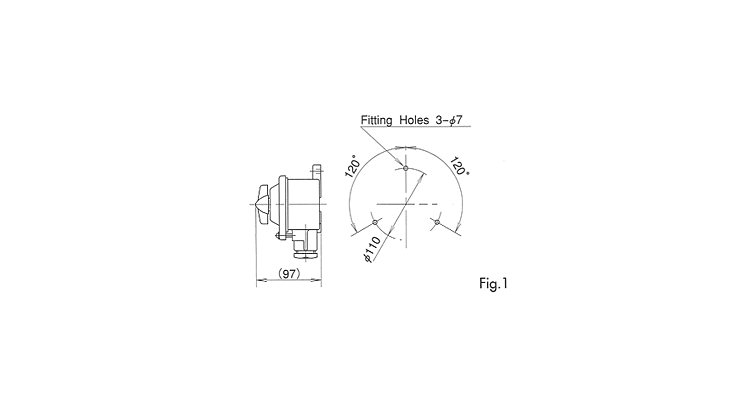

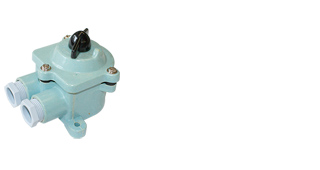

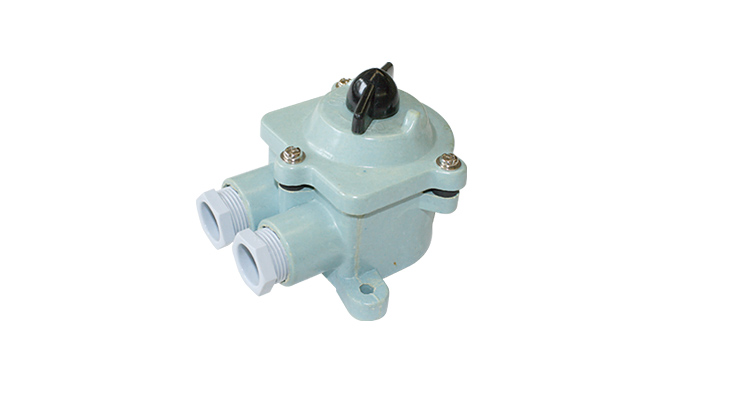

Water-tight Type Switch
| Type | Capacity | Protection | Fig | Body | Weight(kg) |
| 1M | 250V.10A | IP56 | 1 | Plastic | 0.4 |
| 2M | 250V.20A | ||||
| 3WAY | 250V.10A |

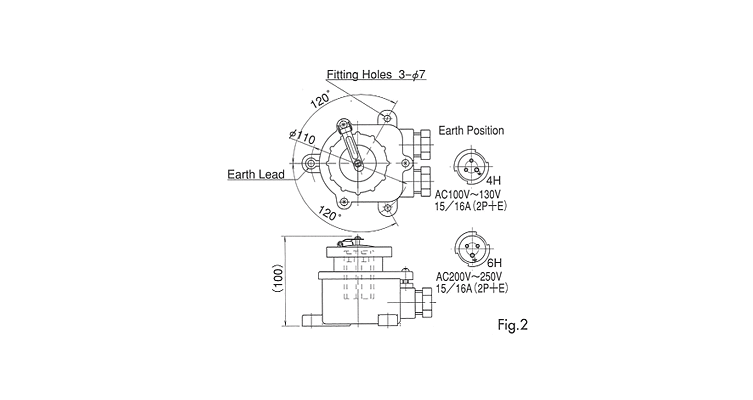

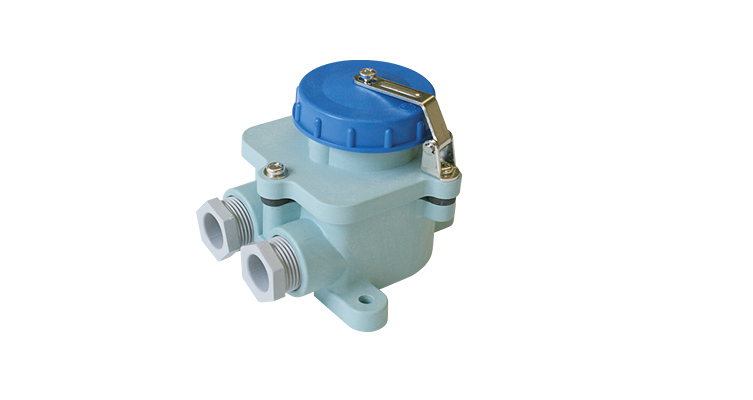

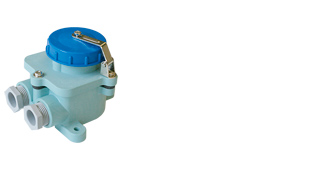

Water-tight Type Receptacle
| Type | Capacity | Protection | Fig | Body | Weight(kg) |
| Rl-2ML2 (Yellow) |
AC100～130V 15/16A (2P+E)4h |
IP56 | 2 | Plastic | 0.4 |
| Rl-2MM2 (Blue) |
AC200～250V 15/16A (2P+E)6h |
Standard: IEC 60309-2/JIS F 8838

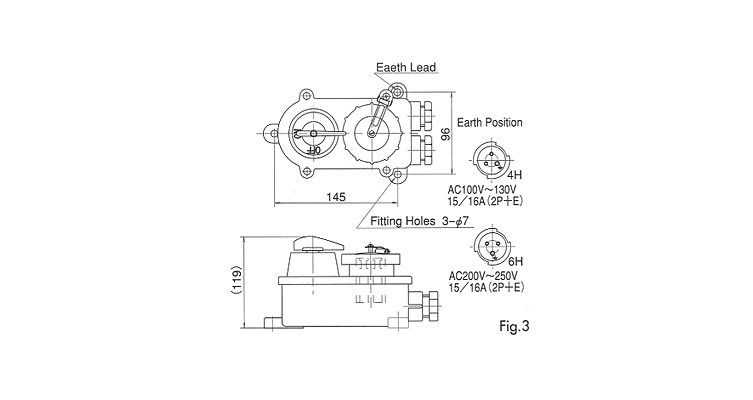

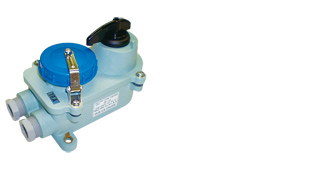

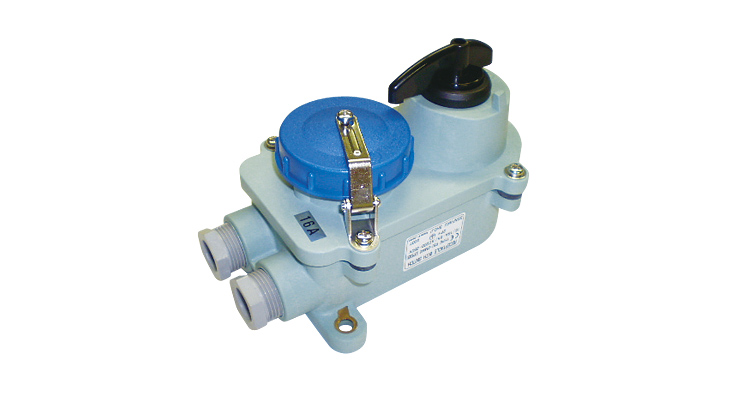

Water-tight Type Switch with Receptacle
| Type | Capacity | Protection | Fig | Body | Weight(kg) |
| RSl-2ML2 (Yellow) |
AC100～130V 10A (2P+E)4h |
IP56 | 3 | Plastic | 0.65 |
| RSl-2MM2 (Blue) |
AC200～250V 10A (2P+E)6h |
Standard: IEC 60309-2/JIS F 8838

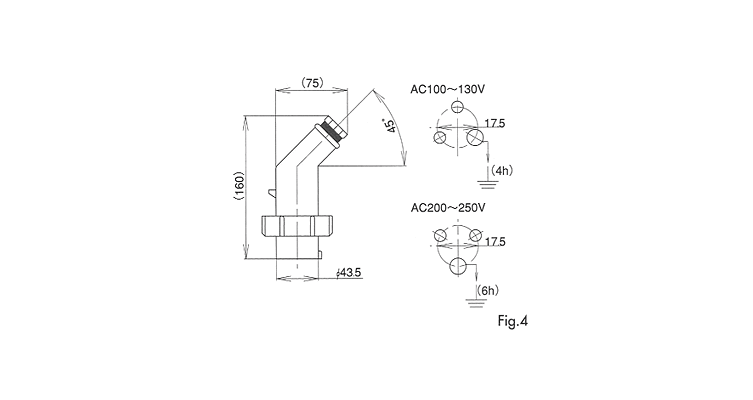

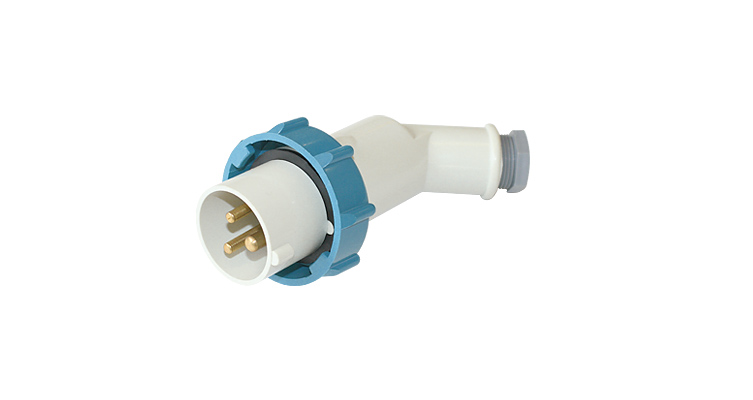

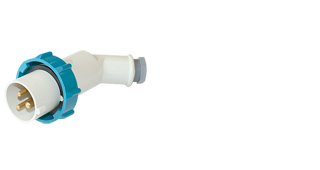

Water-tight Type Plug
| Type | Capacity | Protection | Fig | Body | Weight(kg) |
| Pl-2ML2B (Yellow) |
AC100～130V 16A (2P+E)4h |
IP56 | 4 | Plastic | 0.2 |
| Pl-2MM2B (Blue) |
AC200～250V 16A (2P+E)6h |
Standard: IEC 60309-2/JIS F 8838

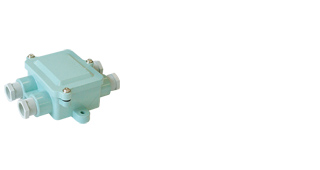

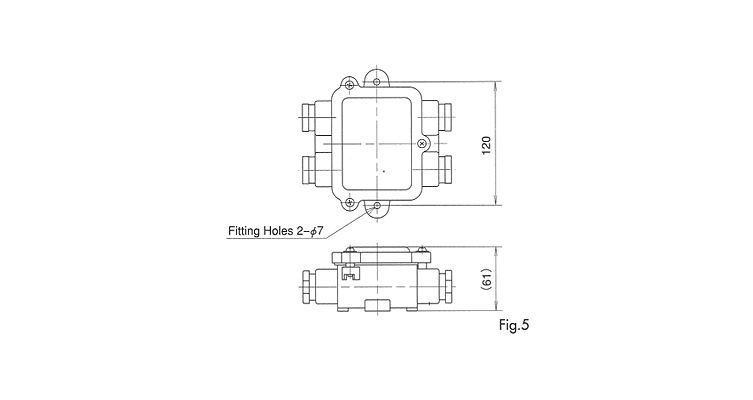

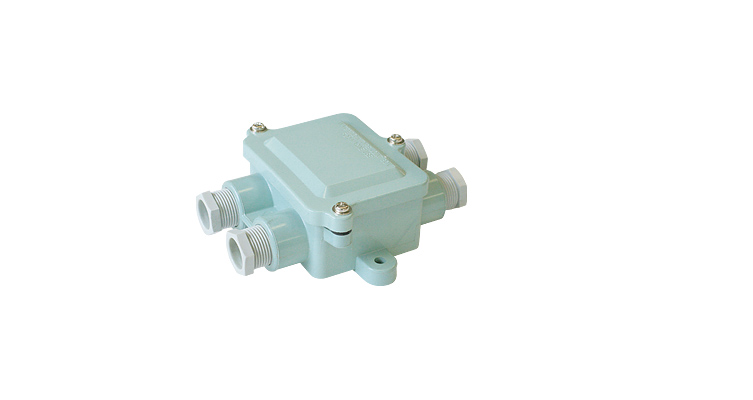

Water-tight Type Junction Box
| Type | Capacity | Gland | Protection | Fig | Body | Weight(kg) |
| 1MO | 250V.10A 3P |
20 ×2 | IP56 | - | Plastic | 0.2 |
| 2MO | 250V.20A 4P |
20 ×4 | 5 |
