A0‹‰ –h‰Î‘‹i‹q‘DAƒtƒFƒŠ[—pj@A0 Class Fire-resistant Windows(For Passenger Ship,Ferry)

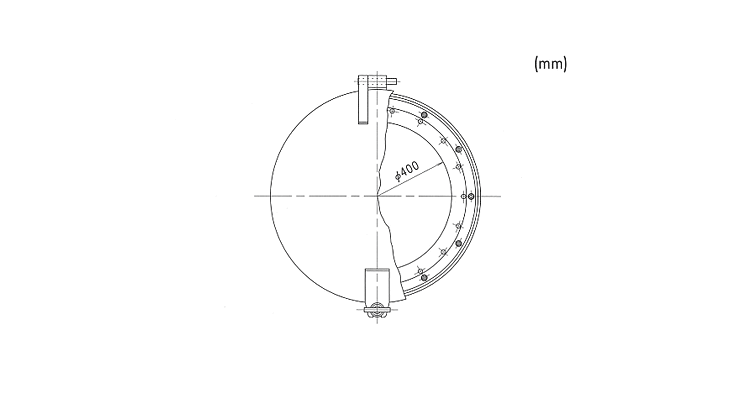

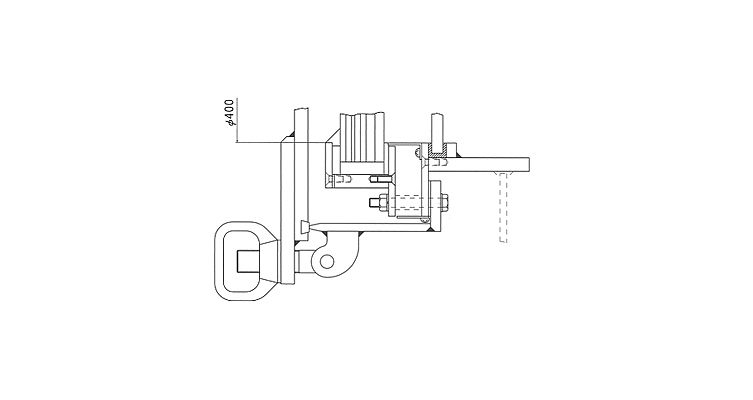

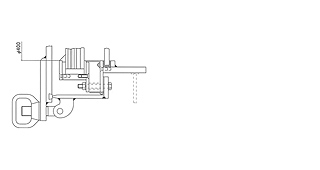

Side Scuttles Welded Type



Maximum Size Type Plate Cut Size

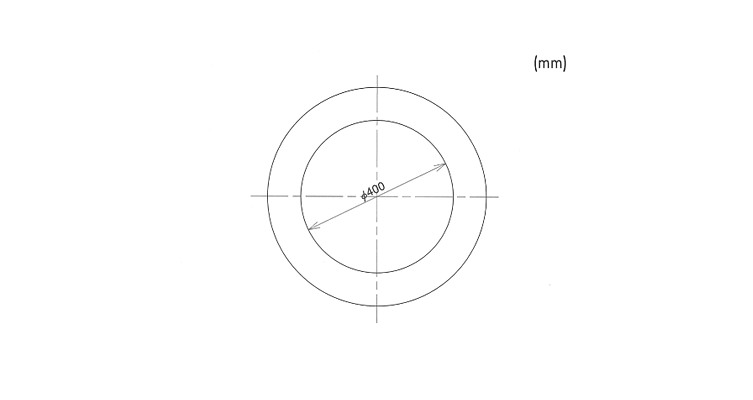

ø400 KKS-A0-08 ø472

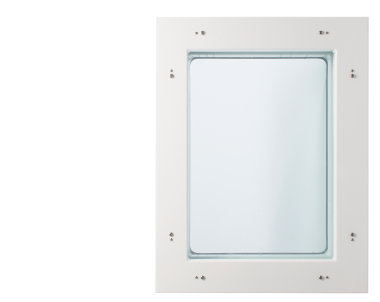

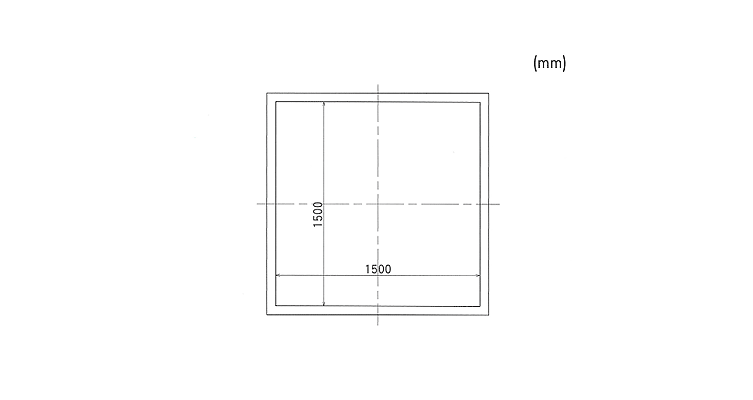

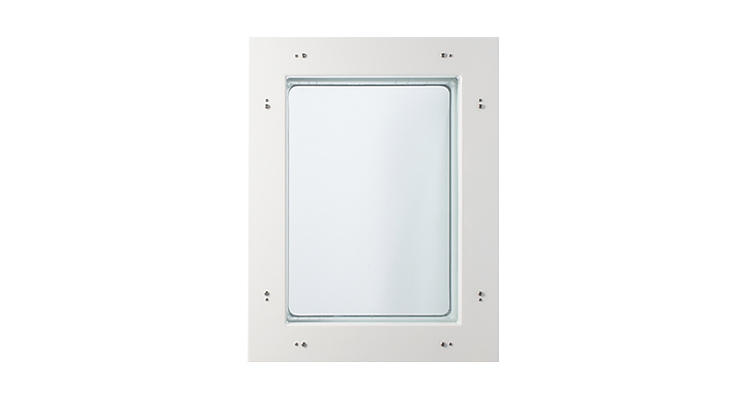

Rectangular Windows Welded Type / Bolted Type



Maximum Size Type Plate Cut Size

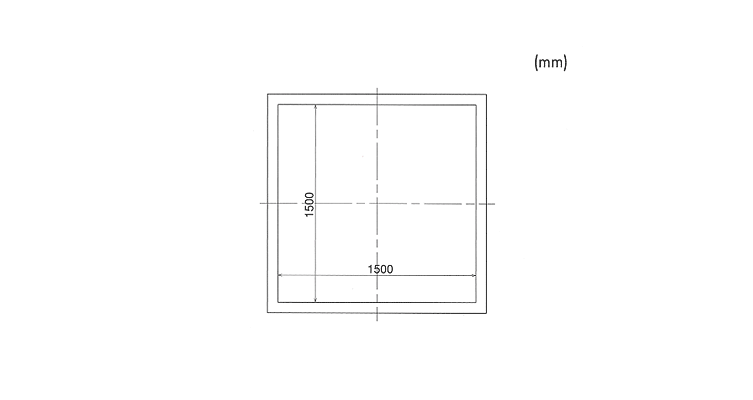

1500 ~ 1500 KKS-A0-11 1572 ~ 1572 ~ R77

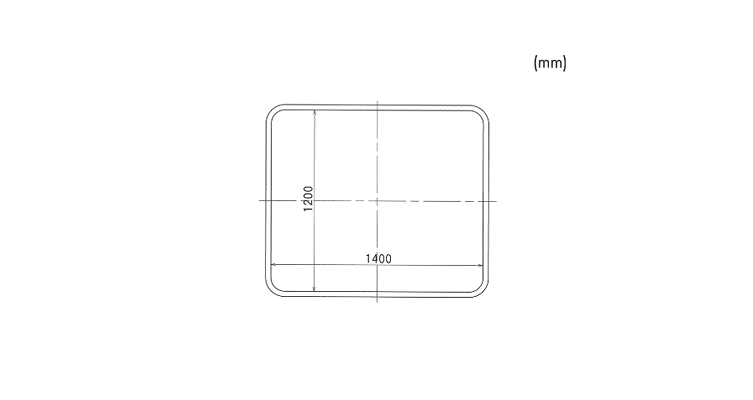

Rectangular Windows Welded Type / Bolted Type



Maximum Size Type Plate Cut Size
1400 ~ 1200 KKS-A0-12 1472 ~ 1272 ~ R126
ƒy[ƒWƒgƒbƒv‚Ö



A60‹‰ –h‰Î‘‹iLPGALNGAƒ^ƒ“ƒJ[—pj@A60 Class Fire-resistant Windows(For LPG,LNG,Tanker)

Side Scuttles Welded Type / Bolted Type



Maximum Size Type Plate Cut Size
ø400 KKS-A60-01A ø454

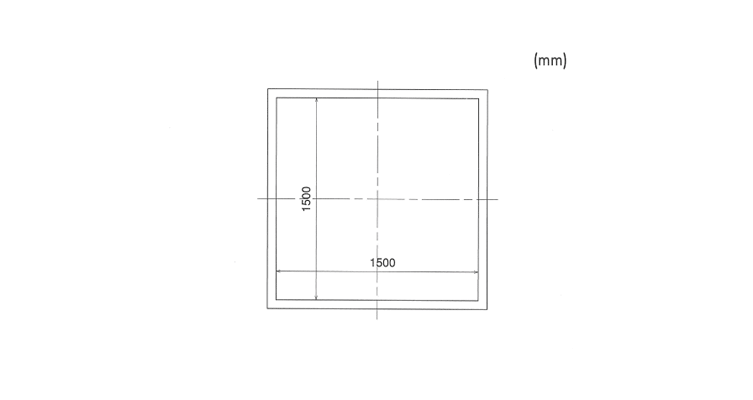

Rectangular Windows Welded Type



Maximum Size Type Plate Cut Size
1500 ~ 1500 KKS-A60-AH3 1516 ~ 1516 ~ R27

Rectangular Windows Welded Type / Bolted Type



Maximum Size Type Plate Cut Size
1500 ~ 1500 KKS-A60-AH2 1572 ~ 1572 ~ R77

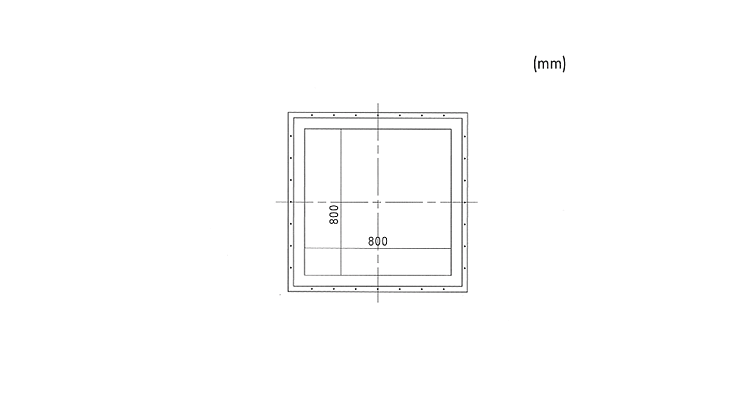

Rectangular Windows Bolted Type



Maximum Size Type Plate Cut Size
800 ~ 800 KKS-A60-FL1 813 ~ 813 ~ R77
