–h…/–h“HŒuŒõ“Vˆä“”@Water-Proof/Drip-Proof Fluorescent Light

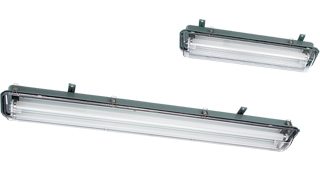

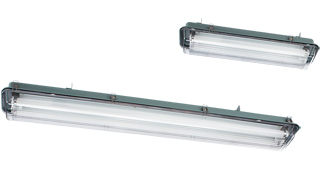

Water-Proof/Drip-Proof Fluorescent Light Fixed Type

–h…/–h“HŒuŒõ“Vˆä“” ŒÅ’èŒ`



Capacity Type Cable
Entrance
Protection Dimensions (mm) Fig Diffuser Housing Finish Weight
(kg)
Standard With Emergency Lamp A B C
20W~1 BCAF021 BCAF021-E Gland IP55 701 500 200 1 LS-768N
(Clear)
Steel 7.5BG7/2 4.6
BCAY021 BCAY021-E Coaming IP34
20W~2 BCAF022 BCAF022-E Gland IP55 5.2
BCAY022 BCAY022-E Coaming IP34
40W~1 BCAF041 BCAF041-E Gland IP55 1311 750 200 LS-769N
(Clear)
8.8
BCAY041 BCAY041-E Coaming IP34
40W~2 BCAF042 BCAF042-E Gland IP55 9.9
BCAY042 BCAY042-E Coaming IP34
* lnput voltage is 100,110 or 220V
* Stainless steel housing can be selected for outside uses.
* Polycarbonate diffuser is available on request.
* Milky diffuser can be selected.
* Guards & Terminal boxes are available on requestD

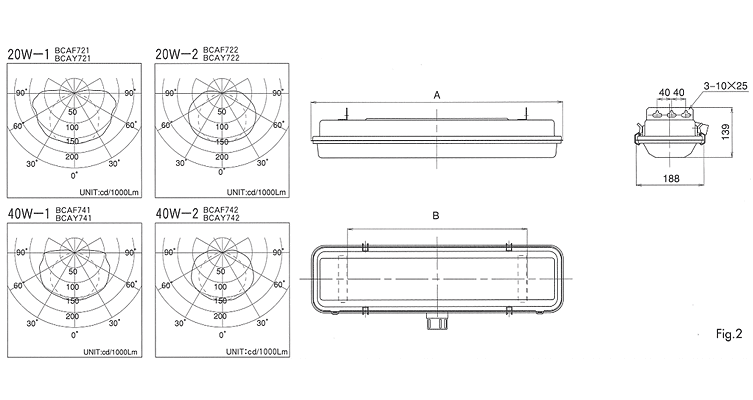

Water-Proof/Drip-Proof Fluorescent Light Hanging Type

–h…/–h“HŒuŒõ“Vˆä“”@’݉º‚°Œ`



Capacity Type Cable
Entrance
Protection Dimensions (mm) Fig Diffuser Housing Finish Weight
(kg)
Standard With Emergency Lamp A B
20W~1 BCAF721 BCAF721-E Gland IP55 701 500 2 LS-768N
(Clear)
Steel 7.5BG7/2 4.6
BCAY721 BCAY721-E Coaming IP34
20W~2 BCAF722 BCAF722-E Gland IP55 5.2
BCAY722 BCAY722-E Coaming IP34
40W~1 BCAF741 BCAF741-E Gland IP55 1311 750 LS-769N
(Clear)
8.8
BCAY741 BCAY741-E Coaming IP34
40W~2 BCAF742 BCAF742-E Gland IP55 9.9
BCAY742 BCAY742-E Coaming IP34
* lnput voltage is 100,110 or 220V
* Stainless steel housing can be selected for outside uses.
* Polycarbonate diffuser is available on request.
* Milky diffuser can be selected.
* Guards & Terminal boxes are available on request.
ƒy[ƒWƒgƒbƒv‚Ö



ŒuŒõ“Vˆä“”@Fluorescent Ceiling Light

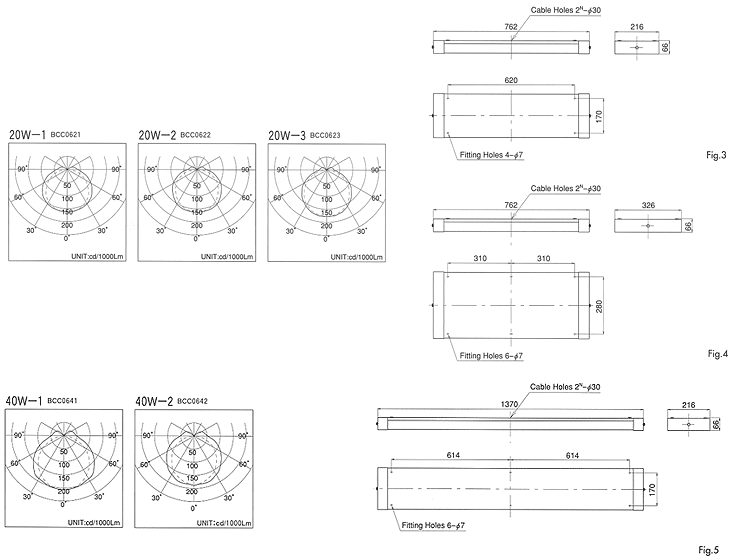

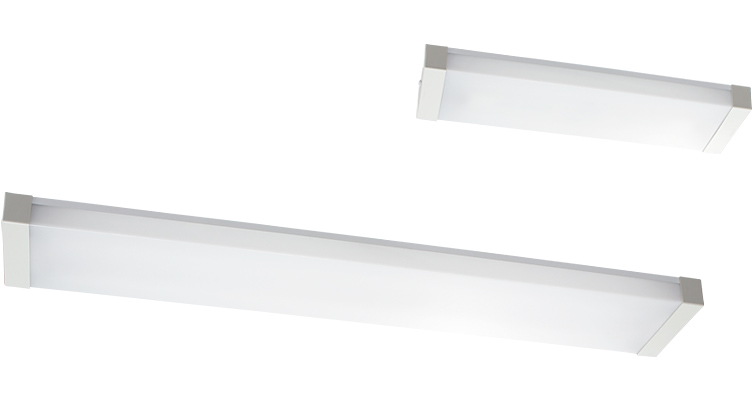

Fluorescent Ceiling Light Surface Type

ŒuŒõ“Vˆä“” ˜IoŒ`



Capacity Type Protection Fig Diffuser Housing Finish Weight
(kg)
Standard With Emergency Lamp
20W~1 BCC0621 BCC0621-E IP20 3 LS-794-1iMilkyj Steel N-9.5 3.1
20W~2 BCC0622 BCC0622-E 3.8
20W~3 BCC0623 BCC0623-E 4 LS-796-1iMilkyj 5.8
40W~1 BCC0641 BCC0641-E 5 LS-795-1iMilkyj 5.4
40W~2 BCC0642 BCC0642-E 5.8
* lnput voltage is 100,110 or 220V
* Prismatic diffuser is available on request.

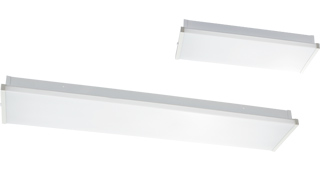

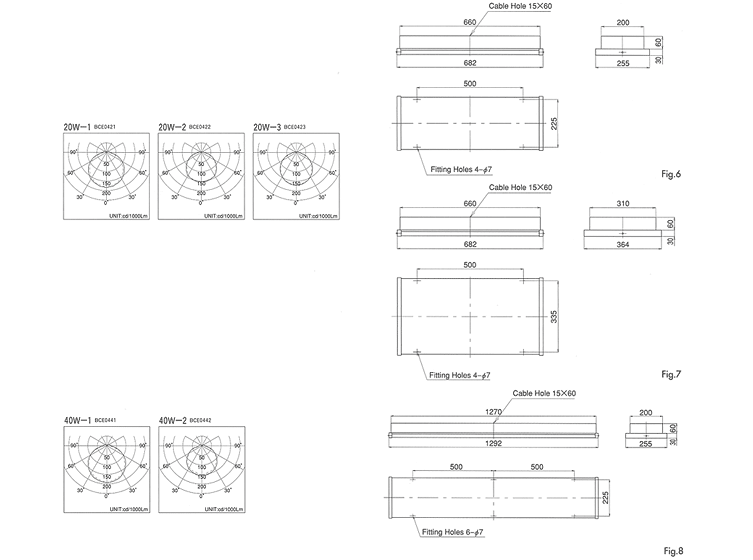

Fluorescent Ceiling Light Recessed Type

ŒuŒõ“Vˆä“”@–„ž‚ÝŒ`



Capacity Type Protection Fig Diffuser Housing Finish Weight
(kg)
Standard With Emergency Lamp
20W~1 BCE0421 BCE0421-E IP20 6 LS-715iMilkyj Steel N-9.5 3.3
20W~2 BCE0422 BCE0422-E 4.4
20W~3 BCE0423 BCE0423-E 7 LS-716iMilkyj 5.9
40W~1 BCE0441 BCE0441-E 8 LS-717iMilkyj 6.2
40W~2 BCE0442 BCE0442-E 7.9
* lnput voltage is 100,110 or 220V
* Prismatic diffuser is available on request.

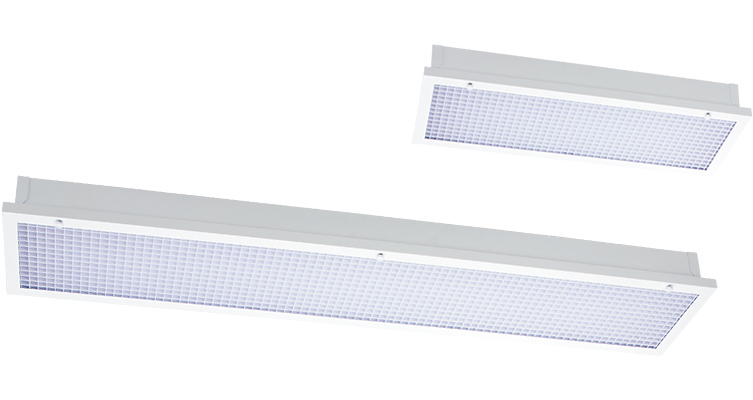

Fluorescent Ceiling Light Recessed Type(with Louver)

ŒuŒõ“Vˆä“”@–„ž‚ÝŒ`iƒ‹[ƒo[•tj



Capacity Type Protection Fig Louver Housing Finish Weight
(kg)
Standard With Emergency Lamp

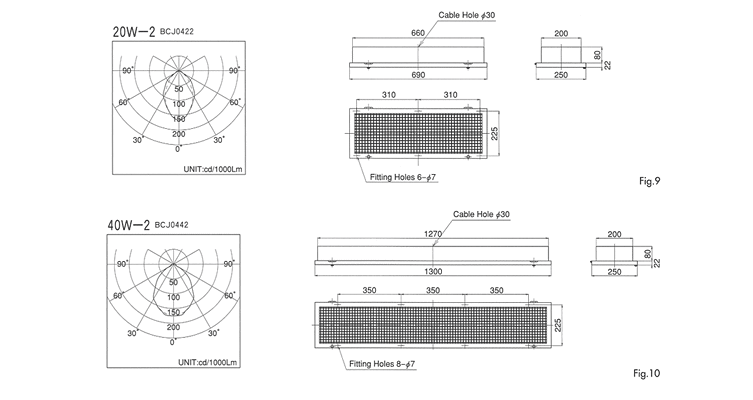

20W~2 BCJ0422 BCJ0422-E IP20 9 LS-804
(white)
Steel N-9.5 4.3
40W~2 BCJ0442 BCJ0442-E 10 LS-805
(white)
7.0
* lnput voltage is 100,110 or 220V
ƒy[ƒWƒgƒbƒv‚Ö

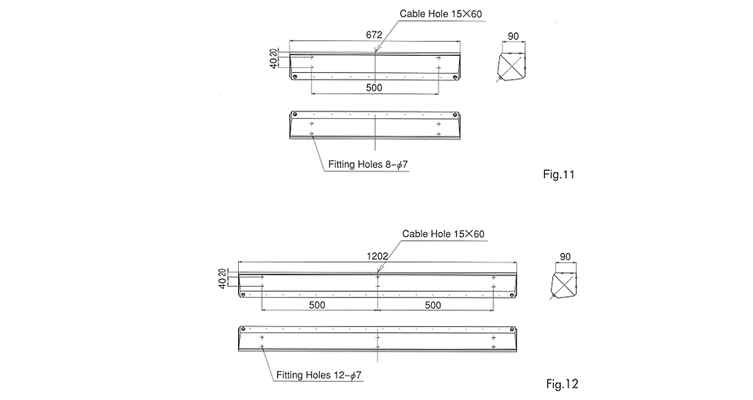

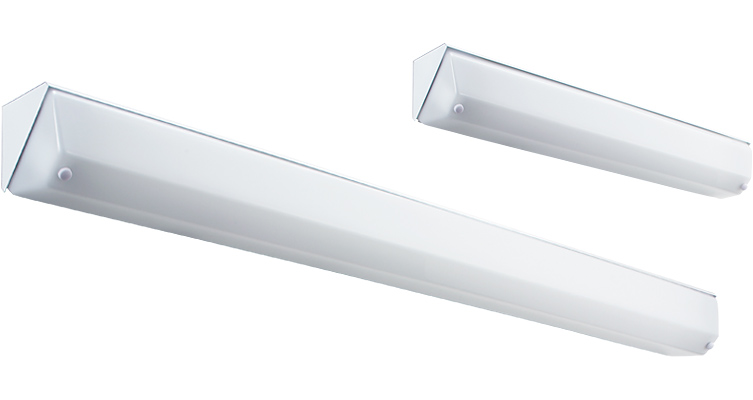

ŒuŒõ’ʘH“”@Fluorescent Passage Light



Capacity Type Protection Fig Diffuser Housing Finish Weight
(kg)
Standard With Emergency Lamp
20W~1 BTC0321 BTC0321-E IP20 11 LS-759
(Milky)
Steel N-9.5 2.5
40W~1 BTC0341 BTC0341-E 12 LS-760
(Milky)
7.0
* lnput voltage is 100,110 or 220V
* Clear diffuser can be selected.
ƒy[ƒWƒgƒbƒv‚Ö

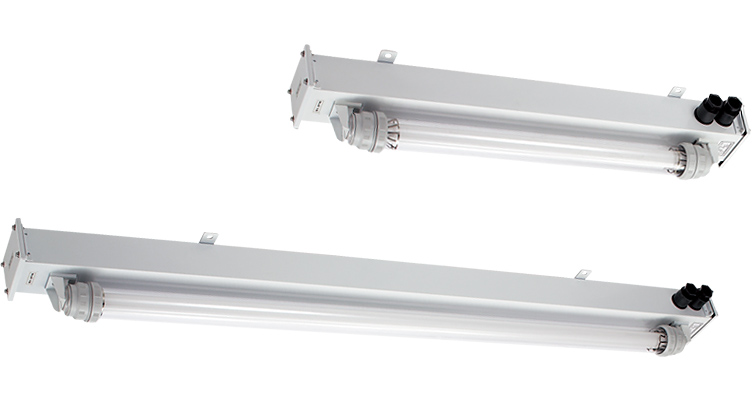

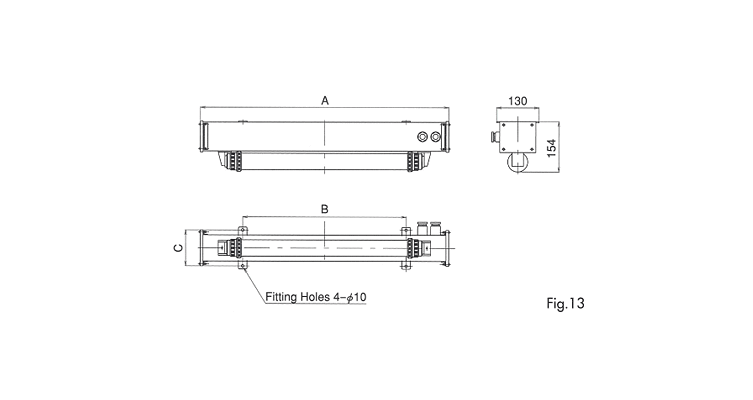

ŠO•”’ʘH“”@Fluorescent Outer Passage Light



Capacity Type Protection Fig Dimensions (mm) Diffuser Housing Finish Weight
(kg)
Standard With Emergency Lamp A B C
20W~1 BCAP121 BCAP121-E IP56 13 760 500 110 LS-909N
(Clear)
Stainless
Steel
N-9.5 4.4
20W~2 BCAP122 BCAP122-E 5.3
40W~1 BCAP141 BCAP141-E 1380 750 110 LS-910N
(Clear)
5.9
40W~2 BCAP142 BCAP142-E 6.9
* lnput voltage is 100,110 or 220V
* Guards are available on request.
ƒy[ƒWƒgƒbƒv‚Ö

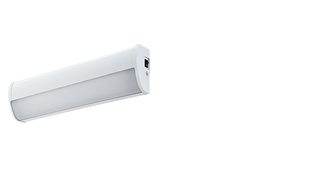

ŒuŒõQ‘ä“”@Fluorescent Bed Light



Capacity Type Protection Fig Dimensions (mm) Switch Receptacle
(2P)
Diffuser Housing Finish Weight
(kg)
A B ‚b

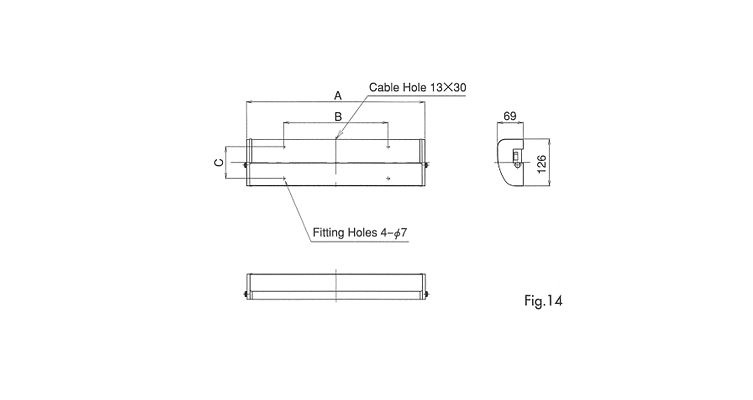

8W~1 BWC2S81 IP20 14 330 280 85 › - LS-483
(Milky)
Steel N-9.5 1.6
BWC2W81 › ›
10W~1 BWC2S11 372 280 85 › - LS-484
(Milky)
1.8
BWC2W11 › ›
15W~1 BWC2S51 477 280 85 › - LS-485
(Milky)
2.2
BWC2W51 › ›
* lnput voltage is 100,110 or 220V
ƒy[ƒWƒgƒbƒv‚Ö

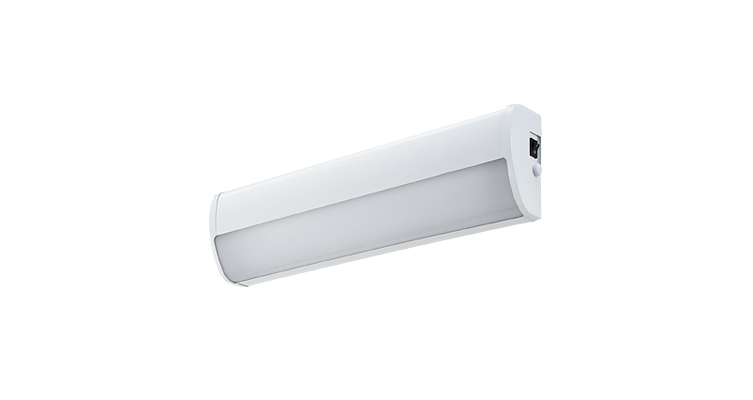

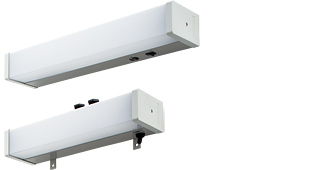

ŒuŒõ•Ç•t“”@Fluorescent Wall Light



Capacity Type Protection Fig Dimensions (mm) Switch Receptacle
(2P)
Diffuser Housing Finish Weight
(kg)
A B ‚b

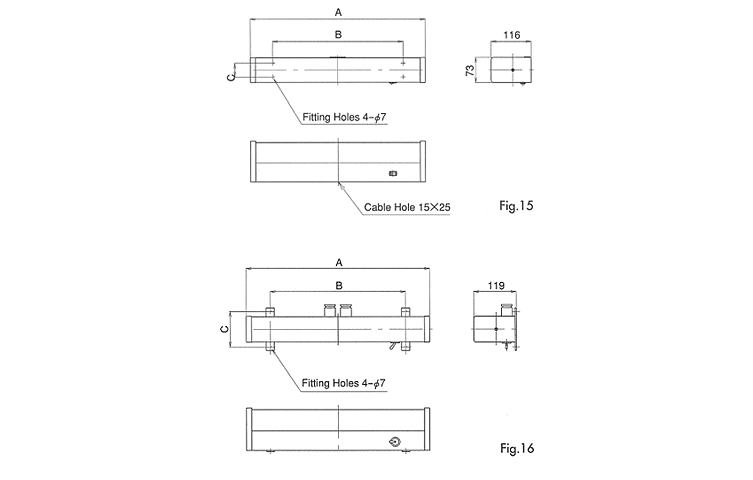

8W~1 BWC3081 IP20 15 325 260 40 - - LS-630
(Milky)
Steel Ivory 1.4
BWC3S81 › -
10W~1 BWC3011 404 260 40 - - LS-791
(Milky)
1.7
BWC3S11 › -
BWC3W11 › ›
15W~1 BWC3051 510 380 40 - - LS-761
(Milky)
1.9
BWC3S51 › -
BWC3W51 › ›
* lnput voltage is 100,110 or 220V
Capacity Type Protection Fig Dimensions (mm) Switch Receptacle
(2P)
Diffuser Housing Finish Weight
(kg)
A B ‚b
8W~1 BWB3081 IP34 16 335 230 100 - - LS-780
(Milky)
Steel Ivory 1.3
BWB3S81 › -
10W~1 BWB3011 410 260 100 - - LS-789
(Milky)
1.7
BWB3S11 › -
15W~1 BWB3051 515 380 100 - - LS-778
(Milky)
1.9
BWB3S51 › -
BWB3W51 › ›
* lnput voltage is 100,110 or 220V
ƒy[ƒWƒgƒbƒv‚Ö

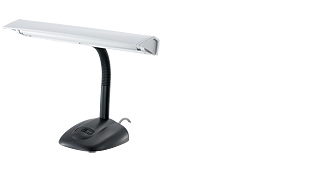

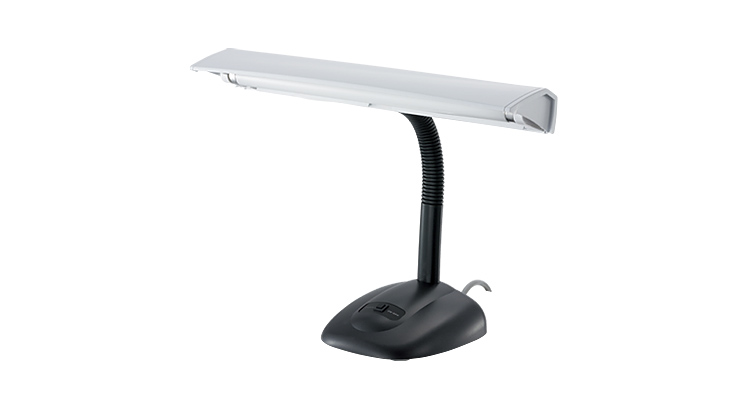

ŒuŒõ‘ìã“”@Fluorescent Desk Light



Capacity Type Protection Body Body Shade Weight(kg)
15W ~1 BXDM751 IP20 Polystyrene Black White 2.0
With a code & UB plug.
ƒy[ƒWƒgƒbƒv‚Ö



’~“d’rˆê‘ÌŒ^”ñíÆ–¾‘•’u@

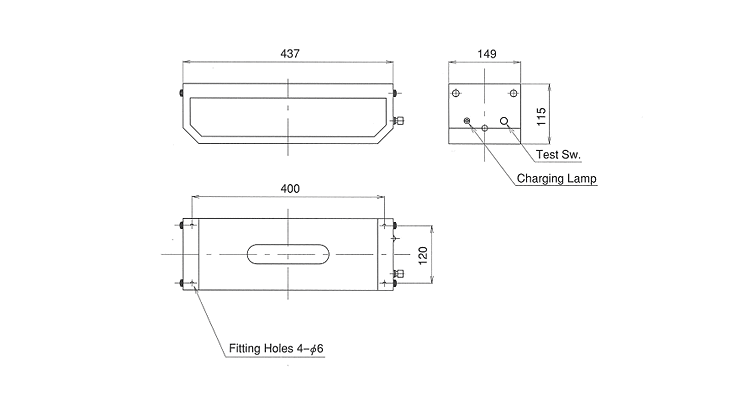

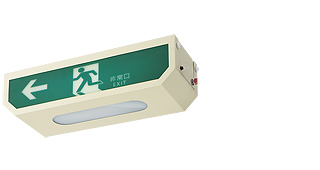

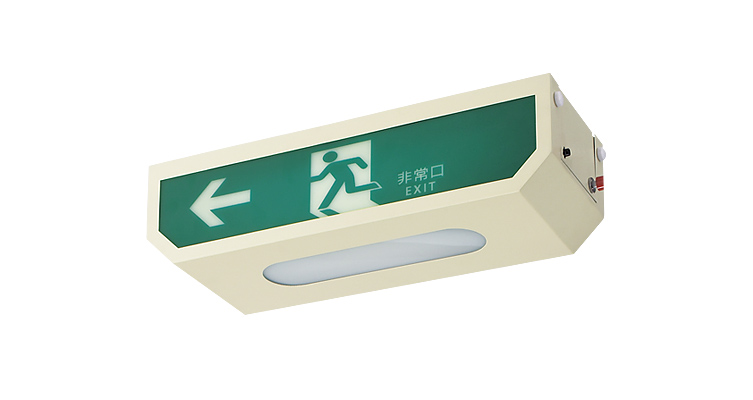

Emergency Light Self Contained Battery Type

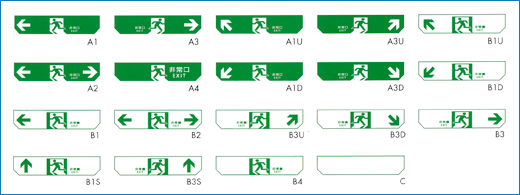

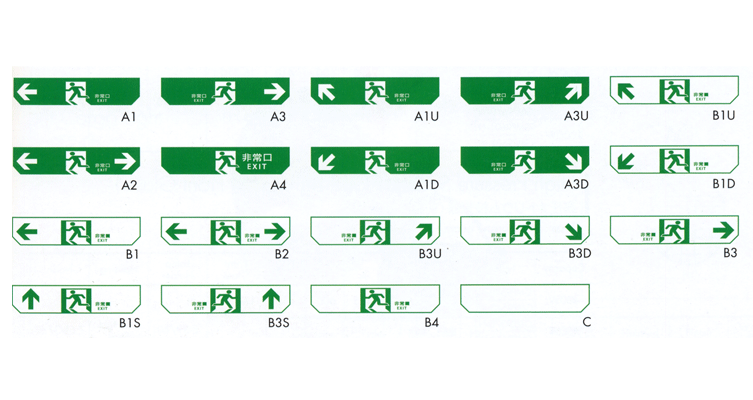

Panels
ƒpƒlƒ‹

Capacity Type Battery Protection Body Finish Weight(kg)
FL10W ~1
and 24V, 10W
BGLS211 3hrs IP30 Steel 2.5Y9/2 4.2
