製品紹介

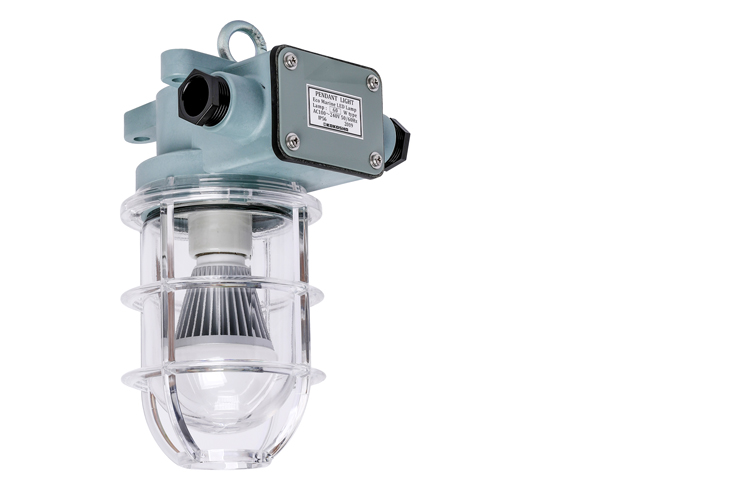

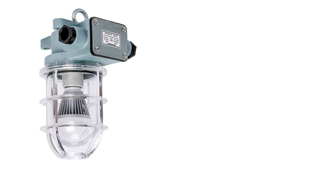

LED作業灯 LED Pendant Light

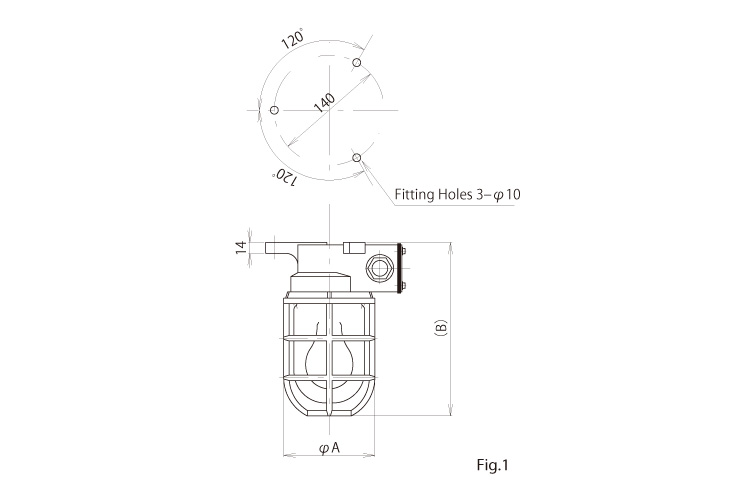

Fixed Type

Protection : IP56
Guard : PC (polycarbonate)
Body : P.B.T.
Finish : 7.5BG7/2



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Dimensions
(mm)
Lamp
Holder
Globe
(material)
Weight
(kg)
Fig
A B

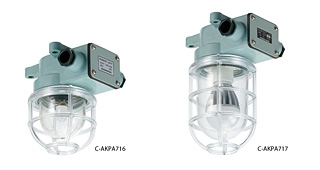

5W type C-AKPA716 DC24 0.5 - 27 106 163 B-15 S80AP(PC) 1.0 1
60W type C-AKPA717 AC100~240 100V : 6.9
220V : 7.2
5800 800 116 225 E-26 S90A
(Glass)
1.5
* Color Temperature : 5800K…Natural White
* Without guard is available on request.
* Screen (60W) is available on request.

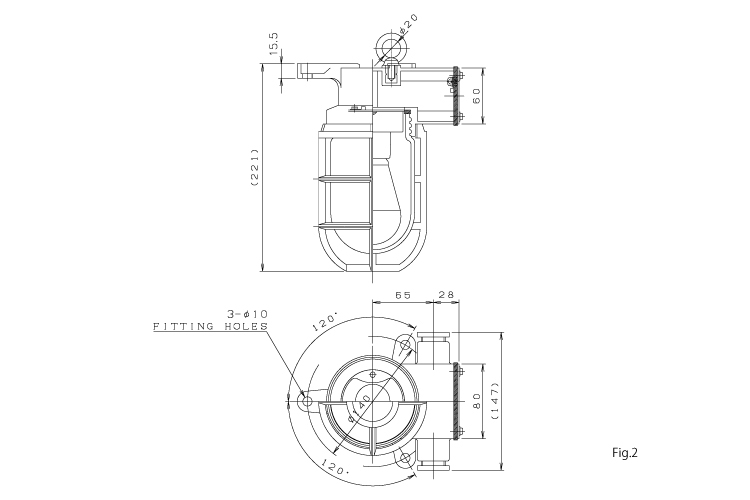

Hanging Type

Protection : IP56
Guard : PC (polycarbonate)
Body : P.B.T.
Finish : 7.5BG7/2



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Dimensions
(mm)
Lamp
Holder
Globe
(material)
Weight
(kg)
Fig
A B
5W type C-AKPA716-H DC24 0.5 - 27 106 163 B-15 S80AP(PC) 1.0 2
60W type C-AKPA717-H AC100~240 100V : 6.9
220V : 7.2
5800 800 116 225 E-26 S90A
(Glass)
1.5
* Color Temperature : 5800K…Natural White
* Without guard is available on request.
* Screen (60W) is available on request.
ページトップへ

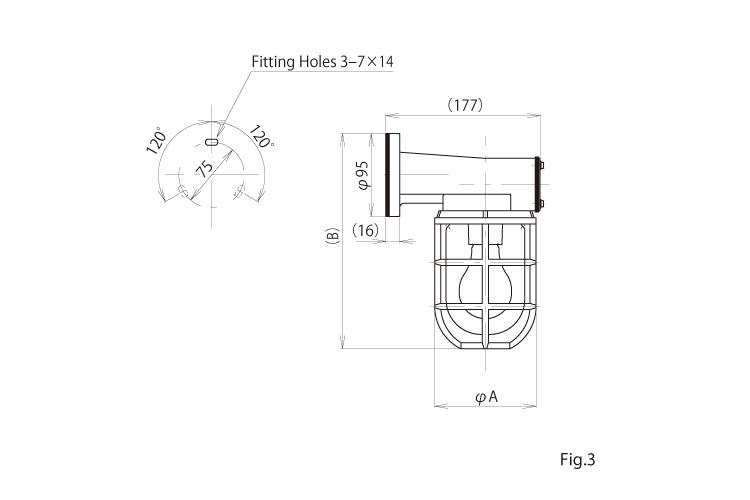

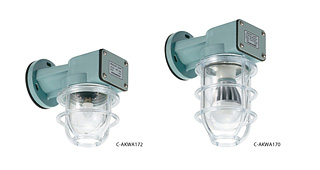

LEDブラケット灯 LED Bracket Light

Bulkhead Type

Protection : IP56
Guard : PC (polycarbonate)
Body : P.B.T.
Finish : 7.5BG7/2



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Dimensions
(mm)
Lamp
Holder
Globe
(material)
Weight
(kg)
Fig
A B

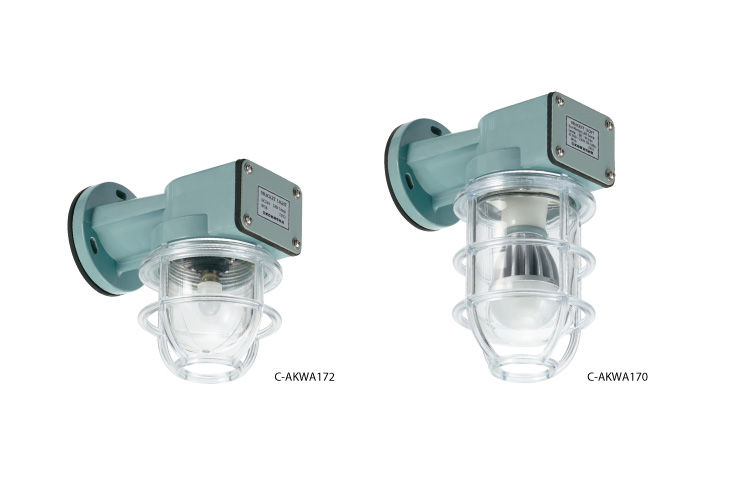

5W type C-AKWA172 DC24 0.5 - 27 106 195 B-15 S80AP(PC) 1.0 3
60W type C-AKWA170 AC100~240 100V : 6.9
220V : 7.2
5800 800 116 252 E-26 S90A
(Glass)
1.5
* Color Temperature : 5800K…Natural White
* Screen (60W) is available on request.
* Liner is available on request.

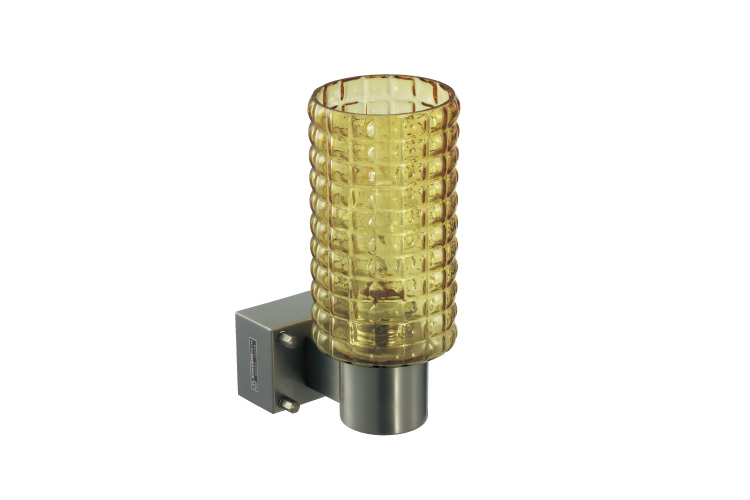

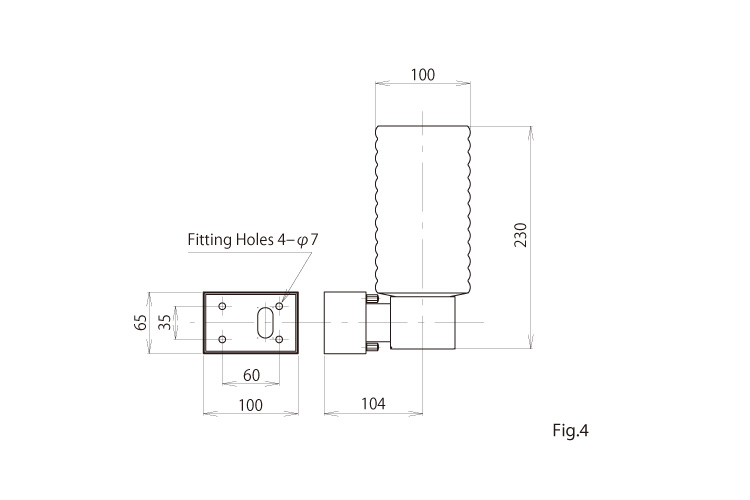

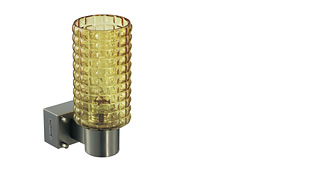

Decorative Type

Protection : IP20
Lamp Holder : E-26
Body : Brass
Finish : White Bronze



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Globe
(material)
Weight
(kg)
Fig
60W type×1
C-AZT03392 AC100~240 100V : 6.9
220V : 7.2
5800 800 LS-654
(Glass)
1.2 4
60W type×2 C-AZT03212 100V : 13.8
220V : 14.4
800×2 2.8 -
* Color Temperature : 5800K…Natural White
ページトップへ

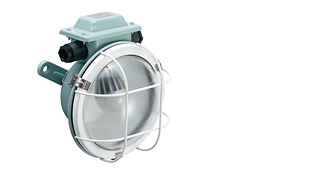

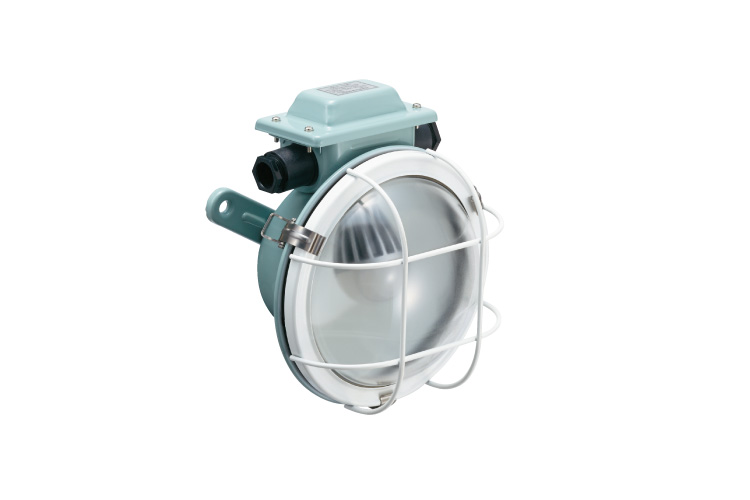

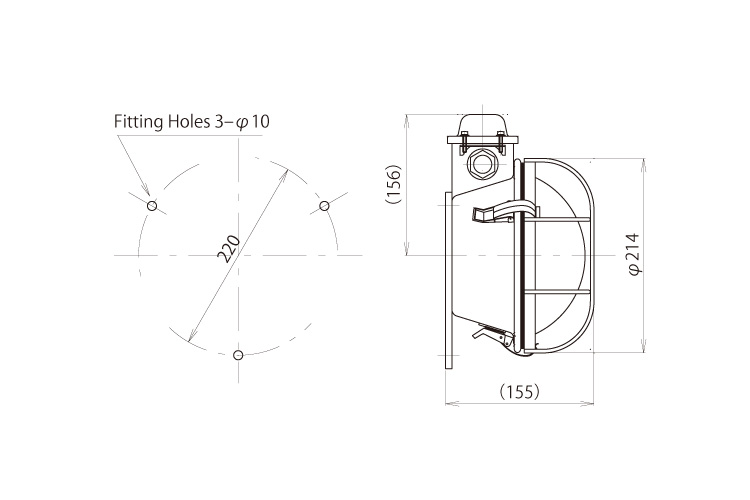

LED壁付灯 LED Wall Light

Protection : IP56
Lamp Holder : E-26
Body : Stainless Steel
Finish : 7.5BG7/2



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Globe
(material)
Weight
(kg)
60W type
C-AMW7260 AC100~240 100V : 6.9
220V : 7.2
5800 800 FA5-175 (Glass) 2.2
* Color Temperature : 5800K…Natural White
ページトップへ

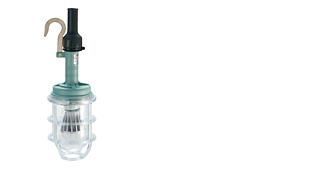

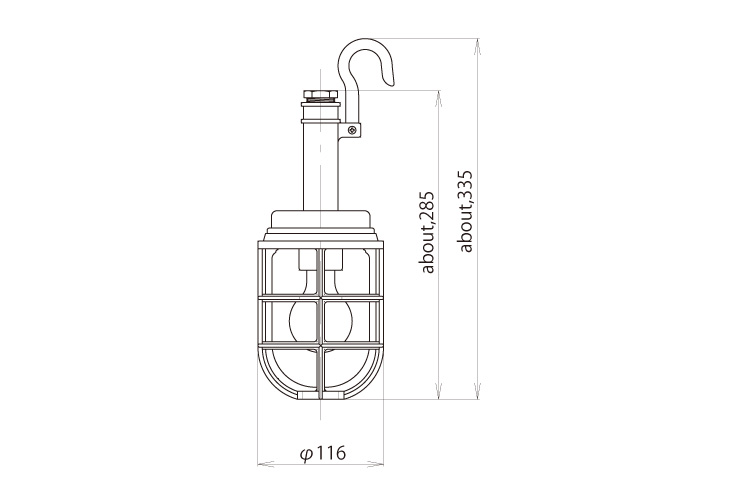

LED手提げ灯 LED Hand Lamp

Protection : IP55
Lamp Holder : E-26
Body : P.B.T.
Finish : 7.5BG7/2



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Globe
(material)
Weight
(kg)
60W type
C-AXH2400 AC100~240 100V : 6.9
220V : 7.2
5800 800 S90A (Glass) 0.68
* Color Temperature : 5800K…Natural White
ページトップへ

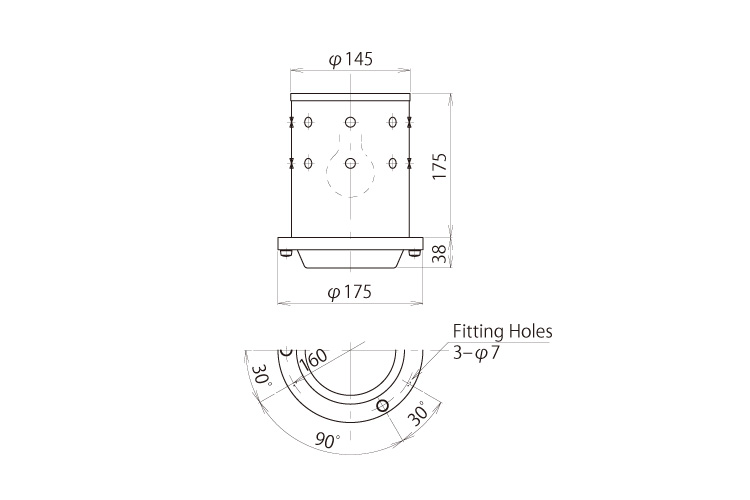

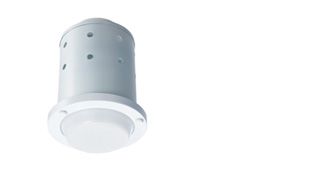

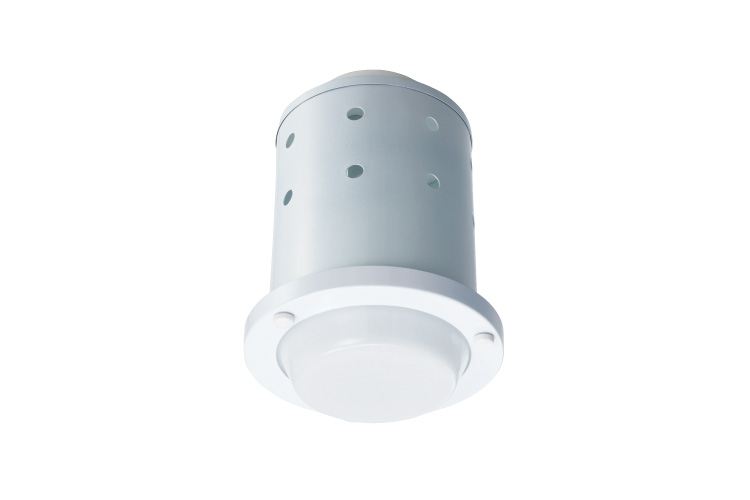

LEDダウンライト LED Down Light

Protection : IP20
Lamp Holder : E-26
Body : Steel
Finish : N-9.5



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Globe
(material)
Weight
(kg)
60W type
C-AZO0174 AC100~240 100V : 6.9
220V : 7.2
5800 800 LS-633 (Milky) 1.0
* Color Temperature : 5800K…Natural White
* Globe : Red color is available on request. (LS-633R)

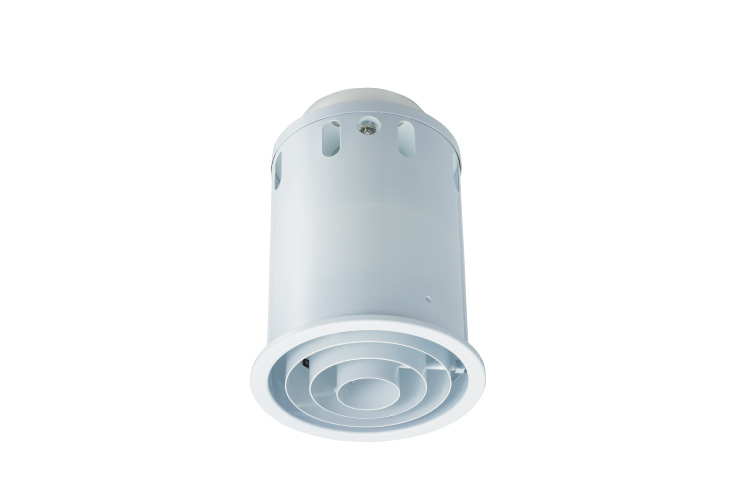

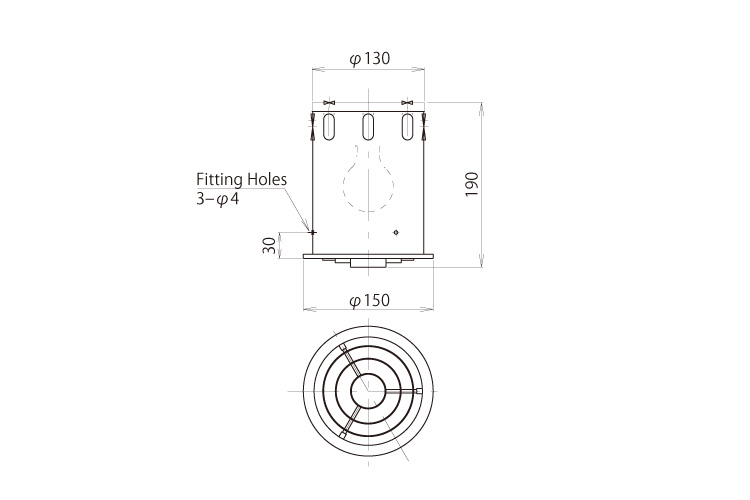

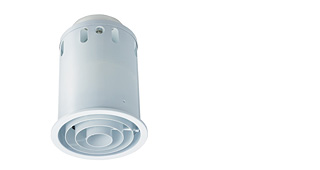

LED Down Light With Louver

LEDダウンライトルーバー付

Protection : IP20
Lamp Holder : E-26
Body : Steel
Finish : N-9.5



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Weight
(kg)
60W type
C-AMO6100 AC100~240 100V : 6.9
220V : 7.2
5800 800 1.0
* Color Temperature : 5800K…Natural White
ページトップへ

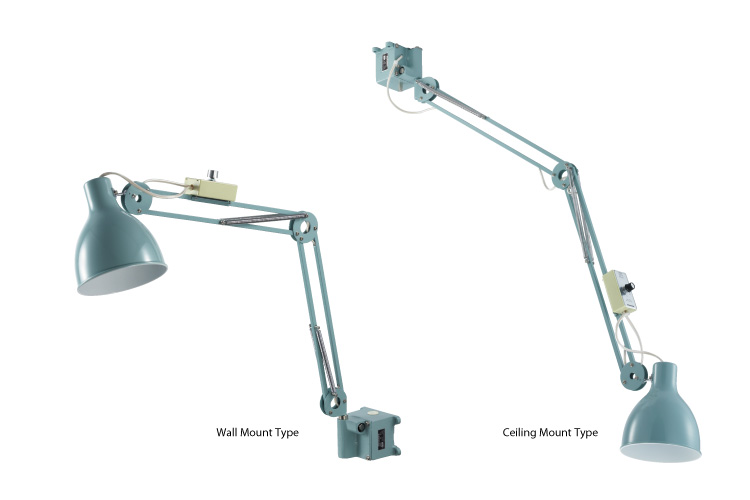

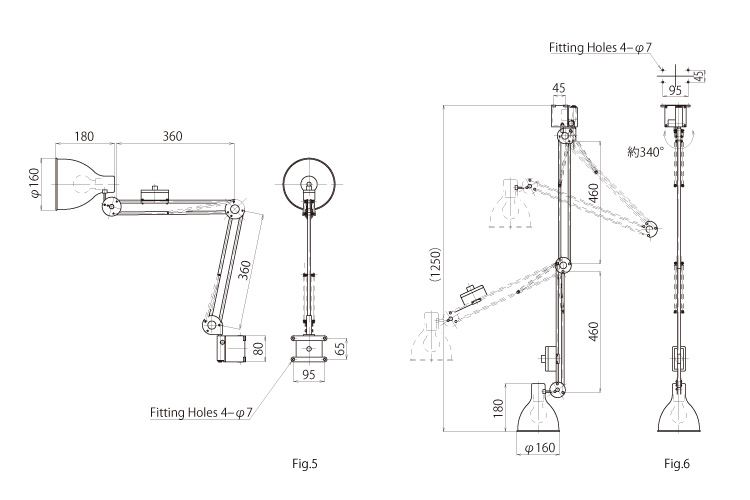

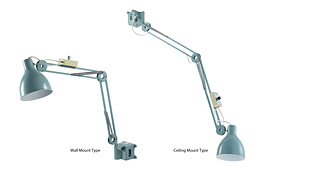

LED海図台灯 LED Chart Table Light

Protection : IP20
Lamp Holder : E-26
Body : Steel
Finish : 7.5BG7/2



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Switch Dimmer
Switch
Weight
(kg)
Fig

60W type

Wall Mount
Type
C-AZK0190-S AC100~240 100V : 6.9
220V : 7.2
5800 800 - 2.7 5
C-AZK0190-DS AC100 100V : 7.2 2700 810 -
Ceiling Mount
Type
C-AZK0200-S AC100~240 100V : 6.9
220V : 7.2
5800 800 - 3.1 6
C-AZK0200-DS AC100 100V : 7.2 2700 810 -
Desk Mount
Type
C-AZK0191-S AC100~240 100V : 6.9
220V : 7.2
5800 800 - 2.9 -
C-AZK0191-DS AC100 100V : 7.2 2700 810 -
* Color filter is available on request.
* Dimmer Switch Type : AC100V ONLY
ページトップへ

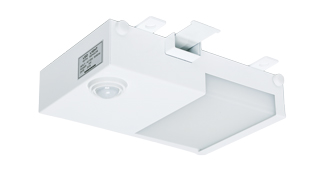

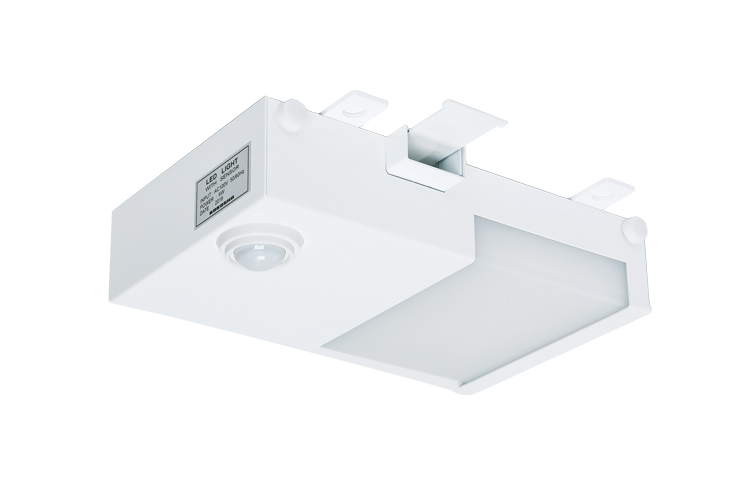

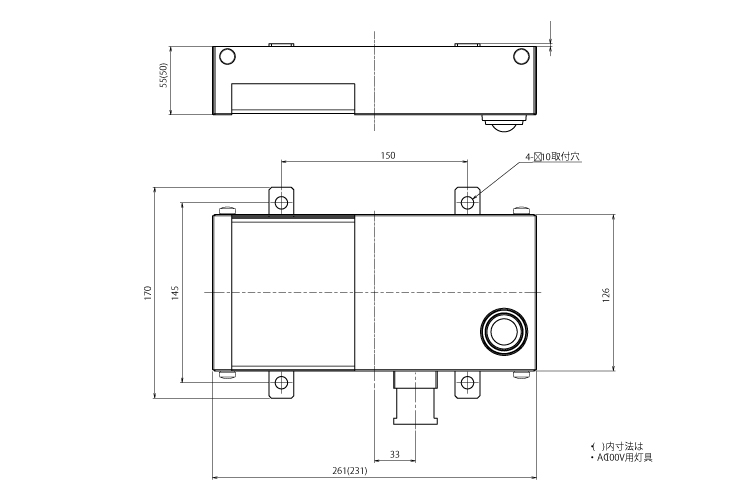

LED天井灯 露出形 人感センサー付
LED Ceiling Light Surface Type with sensor

Protection : IP20
Body : Steel
Finish : N-9.5



  Type Rated Voltage
(V)
Wattage
(W)
Color
Temperature(K)
Luminous
Flux(Lm)
Diffuser Weight
(kg)
60W type×1
C-AMCS1003C01
AC100 9
5000 840
Milky
1.3
60W type×1
C-AMCS1003C12
AC220 12
5000 840
Milky
1.9
* Type (-E) : With Emergency Lamp
* Color Temperature : 5000K…Natural White
* Prismatic diffuser is available on request.
